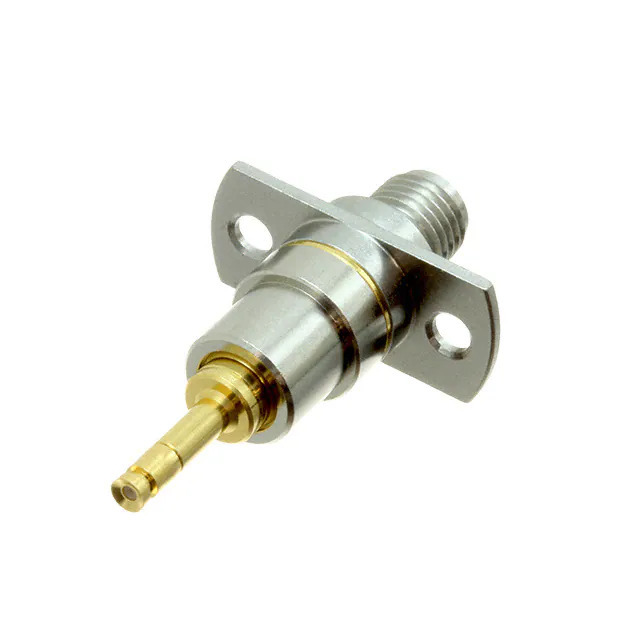

MS-180-HRMJ-F6 Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

MS-180-HRMJ-F6

Part No MS-180-HRMJ-F6
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN ADAPT COAX PLUG TO SMA JACK / Adapter Coaxial Connector Coaxial Switch - 2.24mm Plug Dia Plug, Male Pin To SMA Jack, Female Socket 50Ohm
Datasheet
MS-180-HRMJ-F6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Adapters
Mfr Hirose Electric Co Ltd
Series MS-180
Package Bulk
Product Status Active
Adapter Type Plug to Jack
Conversion Type Between Series
Adapter Series SMA to Coaxial Switch
Center Gender Female to Male
Convert From (Adapter End) Coaxial Switch - 2.24mm Plug Dia Plug, Male Pin
Convert To (Adapter End) SMA Jack, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Push-Pull, Threaded
Frequency - Max 6 GHz
Ingress Protection -
Center Contact Plating Gold
Features -
Includes -
Body Material Beryllium Copper; Stainless Steel
Body Finish Gold; Passivated
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles -
Insertion Loss 0.70dB
Temperature Range - Operating -40°C ~ 85°C
Base Product Number MS-180
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365247-MS-180-HRMJ-F6
Ultra Librarian 3D Model Ultra Librarian MS-180-HRMJ-F6 CAD Model

Description

The MS-180-HRMJ-F6 is a coaxial connector adapter manufactured by Hirose Electric Co Ltd.

  • Series: MS-180
  • Mounting Type: Panel Mount
  • Style: Straight
  • Fastening Type: Push-Pull and Threaded
  • Impedance: 50Ohm
  • Frequency Range: Up to 6 GHz
  • Contact Material: Beryllium Copper
  • Shell Material: Stainless Steel
  • Contact Finish: Gold
  • Shell Finish: Passivated
  • Adapter End 1: Coaxial Switch - 2.24mm Plug Dia Plug (Male Pin)
  • Adapter End 2: SMA Jack (Female Socket)
