The LTM9010IY-14#PBF is a high-performance, ultra-low power ADC (Analog to Digital Converter) module designed and manufactured by Linear Technology, a leading player in the field of analog integrated circuits. This product is part of Linear Technology's µModule® (micro module) converter series, which integrates the ADC, reference, and passive components in a compact BGA (Ball Grid Array) package.

Key Features

• Resolution: The LTM9010IY-14#PBF boasts a 14-bit resolution, providing high precision for a wide range of applications.
• Sampling Rate: It is capable of a 125Msps (Mega samples per second) sampling rate, ensuring fast data acquisition for real-time processing.
• Integrated Features: This ADC includes an integrated sample-and-hold circuit, reducing the need for external components and simplifying the design process.
• Power Efficiency: Designed for power-sensitive applications, it maintains excellent performance while minimizing power consumption.
• Interface: The device features a user-friendly serial LVDS (Low-Voltage Differential Signaling) interface that facilitates high-speed data transfer with reduced noise.
• Temperature Range: With an industrial temperature range, the LTM9010IY-14#PBF operates reliably across diverse environmental conditions.

Applications

The LTM9010IY-14#PBF is ideal for a broad spectrum of applications, including:

• Medical imaging systems
• High-speed data acquisition systems
• Communications infrastructure
• Instrumentation
• Radar and satellite systems

Quality and Reliability

Linear Technology's commitment to quality ensures that the LTM9010IY-14#PBF meets stringent industry standards for performance and reliability. The device is RoHS compliant, adhering to environmental regulations and minimizing the use of hazardous substances.

Package and Availability

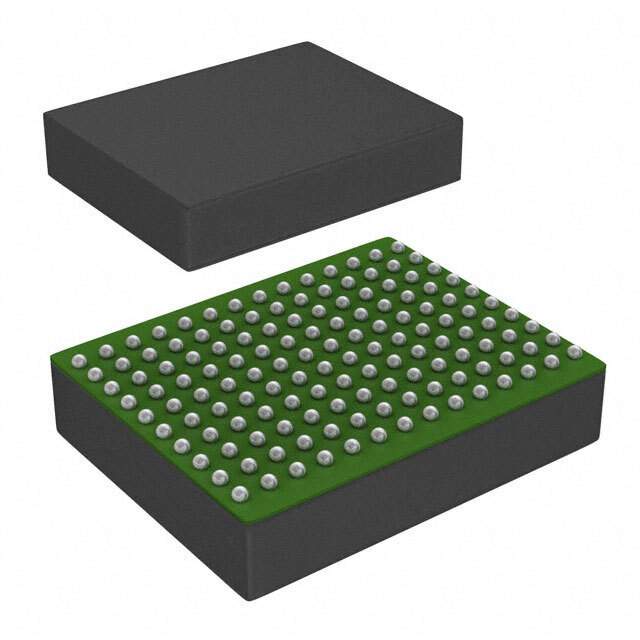

The LTM9010IY-14#PBF comes in a space-saving BGA package that is suitable for compact and densely populated PCBs. It is available for purchase from authorized distributors, with options for bulk and single-unit orders to accommodate both large-scale production and prototyping needs.
