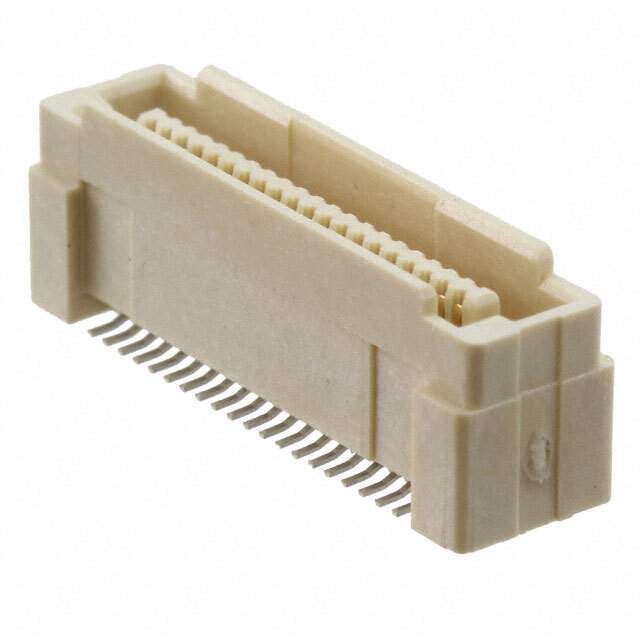

Same model may have multiple batches, images only for reference.

6123001-1

Get a Quote

Part No	6123001-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN PLUG 40POS SMD GOLD
Datasheet	6123001-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	TE Connectivity AMP Connectors
Category	Connectors, Interconnects > Rectangular Connectors > Arrays, Edge Type, Mezzanine (Board to Board)
Part Status	Active
Connector Type	Plug, Center Strip Contacts
Number of Positions	40
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	8mm
Height Above Board	0.309" (7.85mm)
Ultra Librarian 3D Model	Ultra Librarian 6123001-1 CAD Model

Alternative Products

Description

● For parallel board stacking applications

● High density packaging on 0.8 [.031] centerline spacing

● Available sizes from 40 to 200 positions (in 20 position increments)

● Board stacking heights available from 5 [.197] to 16 [.630] (in 1 [.039] increments)

● Bellows type spring contacts are resistant to scooping and stubbing during mating and unmating

● Positioning bosses for proper on-board orientation
