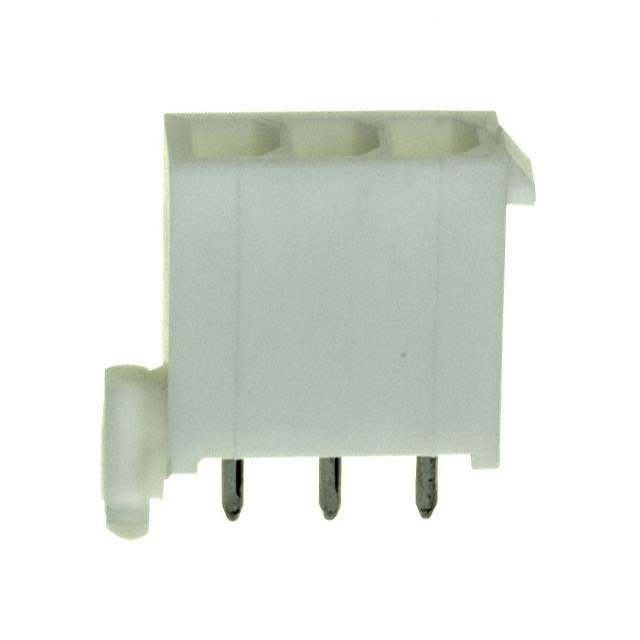

1-770170-0 Real Image
Same model may have multiple batches, images only for reference.

1-770170-0

Part No 1-770170-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 4.14MM / Connector Header Through Hole 3 position 0.163" (4.14mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.175" (4.45mm)
Insulation Height 0.531" (13.50mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 770170
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A32451,17701700,2266-1-770170-0,-1-770170-0-CSI,1-770170-0-ND,-1-770170-0-SI
Standard Package 200
Win Source Part Number 1334347-1-770170-0
Ultra Librarian 3D Model Ultra Librarian 1-770170-0 CAD Model

Description

The TE Connectivity AMP Connectors 1334347-1-770170-0 is a male pin header connector that is used in various electronic devices.

  • Number of Positions: 3
  • Positions Loaded: All
  • Board Lock: Yes
  • Contact Material: Brass
  • Voltage Rating: 600VAC
  • Insulation Material: Polyamide (PA), Nylon
  • Mounting Type: Through Hole
  • Contact Finish: Tin
  • Contact Finish Thickness: 150.0μin (3.81μm)
  • Insulation Color: White
  • Shrouding: Shrouded - 4 Wall
  • Contact Shape: Circular
  • Operating Temperature: -20°C to 85°C
  • Component Status: Active
  • RoHS Compliant: Yes
