Categories RF/IF and RFID
Manufacturer Linear Technology
Packaging Tray
Function Direct Conversion Subsystem
Frequency 700MHz ~ 2.7GHz
RF Type General
Secondary Attributes 20MHz Low Pass Filter
Package 204-BLGA
Manufacturer Package 204-LGA (22x15)
Win Source Part Number 784666-LTM9004CV-AD#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LTM9004
Introduction Date December 02, 2009
ECCN 5A991.b
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LTM9004CV-AD#PBF CAD Model

Description

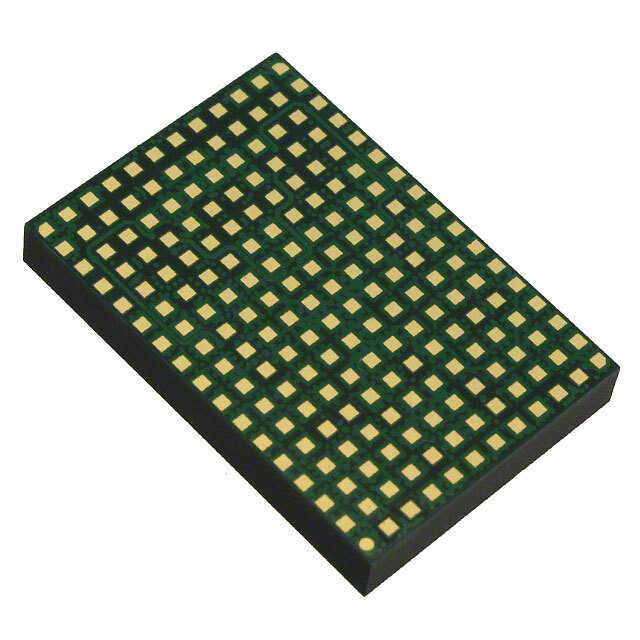

Product Overview: LTM9004CV-AD#PBF

The LTM9004CV-AD#PBF is a high-performance, 14-bit, 125Msps analog-to-digital converter (ADC) module designed by Linear Technology, which is now part of Analog Devices. This device is part of Linear Technology's µModule® (micromodule) family, integrating a high-speed ADC, matched filtering, and a high-performance differential amplifier. The LTM9004CV-AD#PBF is specifically tailored for demanding applications that require precise signal acquisition, such as medical imaging, communications systems, and industrial instrumentation.

Key Features

  • Integrated ADC Solution: The LTM9004CV-AD#PBF combines an ADC with signal conditioning in a compact module, simplifying design and reducing time to market.
  • High Performance: With a 14-bit resolution and a sampling rate of up to 125Msps, this module ensures accurate digitization of high-speed signals with excellent dynamic performance.
  • Built-in Passive Filtering: The integrated passive filtering helps to reduce discrete component count and minimizes signal distortion from unwanted frequencies.
  • Differential Amplifier: The differential amplifier provides high input impedance, precise gain settings, and excellent common-mode rejection ratio (CMRR), which is crucial for high-accuracy applications.
  • Easy to Use: The micromodule design includes all critical signal chain components, offering a plug-and-play experience for designers.
  • Compact Package: Encased in a 15mm x 15mm LGA package, this product is designed for space-constrained applications.

Applications

  • Medical Imaging Systems
  • Communications Infrastructure
  • Industrial Instrumentation
  • Data Acquisition Systems
  • Aerospace and Defense Electronics

The LTM9004CV-AD#PBF is an exemplary solution for engineers looking to enhance system performance with a high-speed, high-precision ADC module. Its integration of multiple functions into a single package not only ensures reliability and performance but also streamlines the design process for complex electronic systems. Whether for advanced medical imaging technologies or for robust communication infrastructure, the LTM9004CV-AD#PBF delivers the quality and performance expected from a leader in analog technology.
