Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Purpose Pre-Distortion Receiver Subsystem
Frequency 184MHz
RF Type General Purpose
Secondary Attributes Down Converter

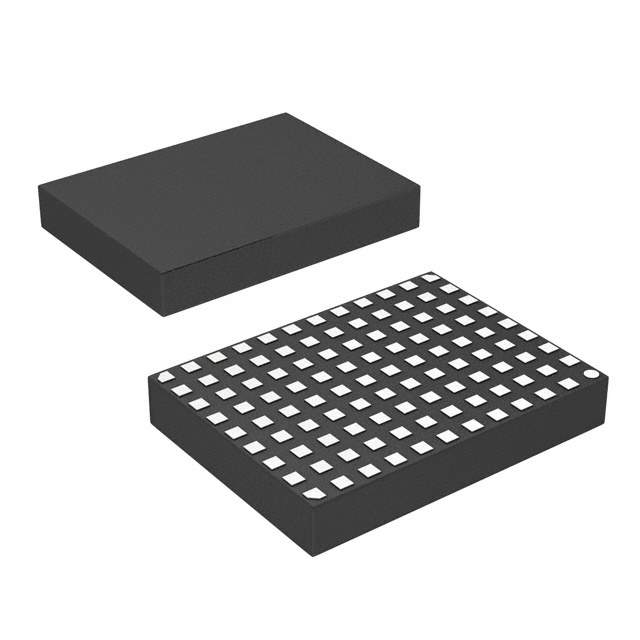

Case / Package 108-LGA (15x11.25)
Win Source Part Number 206815-LTM9003IV-AB
Ultra Librarian 3D Model Ultra Librarian LTM9003IV-AB CAD Model

Description

Introducing the LTM9003IV-AB from Linear Technology

The LTM9003IV-AB is a complete system-in-package (SiP) that significantly simplifies the design of high-performance communication systems. As part of Linear Technology's innovative μModule® family, this product is designed to offer a high level of integration to reduce design time, lower system cost, and minimize the size of the PCB footprint.

Key Features

  • Integrated Solution: The LTM9003IV-AB combines a high-performance 14-bit, 125Msps analog-to-digital converter (ADC) with a high-bandwidth differential amplifier and a low-jitter PLL clock multiplier. This level of integration provides a compact, efficient solution for advanced digital communication systems.
  • Wide Dynamic Range: With its high-resolution ADC, the LTM9003IV-AB ensures a wide dynamic range, making it ideal for demanding applications such as cellular base stations, software-defined radios, and medical imaging systems.
  • Easy to Use: The μModule packaging allows designers to treat this high-performance subsystem as a single component, significantly simplifying the design process and reducing time to market.
  • Flexible Power Supply Options: The LTM9003IV-AB operates over a range of supply voltages, accommodating various system requirements and simplifying the power supply design.
  • Durable and Reliable: Enclosed in a rugged, thermally enhanced 15mm x 15mm LGA package, the LTM9003IV-AB is designed for durability and reliability in harsh environments.

Applications

The LTM9003IV-AB is an excellent choice for a wide range of applications, including:

  • Wireless and Wired Broadband Communication
  • Cellular Base Stations
  • Software-Defined Radios
  • Medical Imaging Systems
  • Test and Measurement Equipment

With its combination of high performance, ease of use, and flexible design options, the LTM9003IV-AB from Linear Technology stands out as a superior choice for designers looking to create advanced communication systems with confidence and efficiency.
