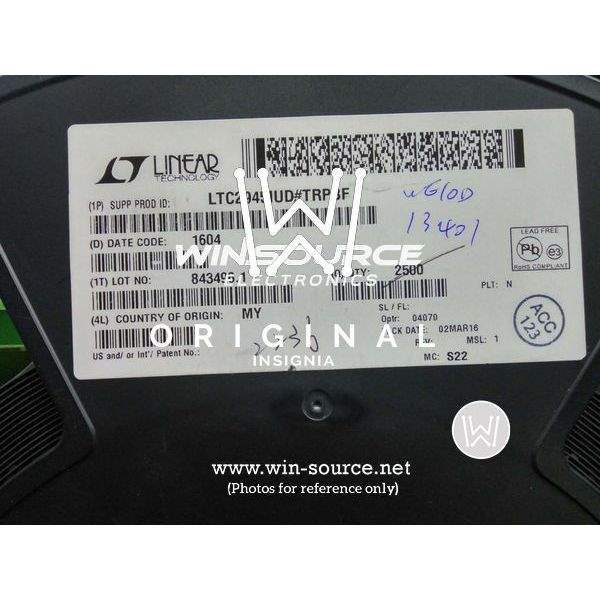

Product Overview: LTC2945IUD#TRPBF

The LTC2945IUD#TRPBF is a comprehensive power monitor IC from Linear Technology, designed to cater to a wide range of applications requiring precise current, voltage, and power monitoring. This high-precision integrated circuit is suitable for systems that need to carefully monitor their power consumption to ensure efficiency and reliability.

Key Features

• Wide Operating Range: The device can monitor a wide voltage range of 0V to 80V, making it versatile for various applications, from low-voltage to high-voltage systems.
• High Accuracy: It offers high accuracy monitoring of current and voltage, ensuring precise control and measurement for critical applications.
• Integrated 12-Bit ADC: The LTC2945 comes with an integrated 12-bit analog-to-digital converter that provides detailed and accurate readings of the measured parameters.
• Power Monitoring: It can measure power by internally multiplying the measured current and voltage, giving users insights into the power usage of their systems.
• I2C/SMBus Compatible Interface: The device supports I2C or SMBus interface for easy integration with microcontrollers and other digital systems, allowing for straightforward communication and control.
• Adjustable Alert Thresholds: Users can set high and low thresholds for voltage, current, and power to trigger alerts, which is essential for protective measures in sensitive applications.

Applications

The LTC2945IUD#TRPBF is ideal for various applications, including but not limited to:

• Telecommunications equipment
• Networking devices such as switches and routers
• Industrial systems
• Automotive electronics
• Portable and battery-powered devices
• Power management systems

Reliability and Packaging

The device is offered in a compact 12-lead QFN package, ensuring a minimal footprint on PCBs. It is also characterized for operation from -40°C to 125°C, which guarantees reliable performance across a wide temperature range, making it suitable for harsh environments.
