Same model may have multiple batches, images only for reference.

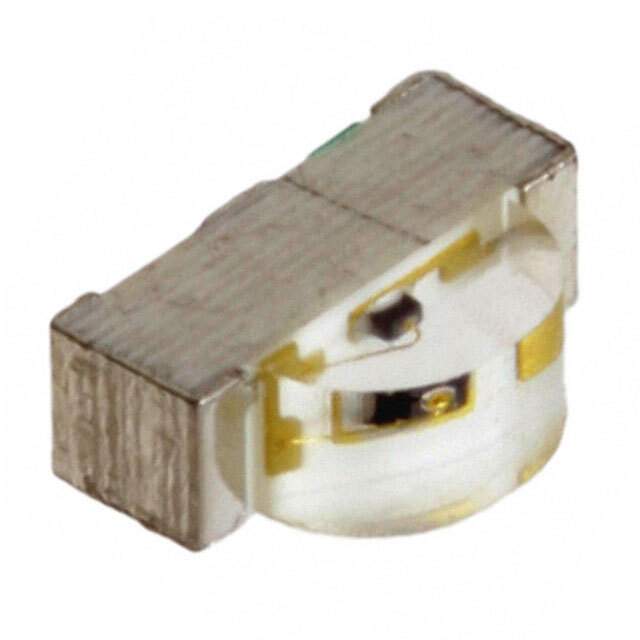

VSMB10940 Real Image
Same model may have multiple batches, images only for reference.

VSMB10940

Part No VSMB10940
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 65MA SMD
Datasheet
VSMB10940 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Infrared (IR)
Continuous forward current- Max 65mA
Radiant Intensity (Ie) Min @ If 1mW/sr @ 20mA
Wavelength 940nm
Forward Voltage 1.3V
Viewing Angle 150°
Orientation Side View
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Surface Mount, Right Angle
Dimension 2-SMD, No Lead
Win Source Part Number 1117710-VSMB10940
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VSMB10940 CAD Model

Description

The VSMB10940 is an infrared (IR) surface mount diode manufactured by Vishay.

  • Viewing Angle: 150°
  • Radiant Intensity (Ie) Min @ If: 1mW/sr @ 20mA
  • Forward Voltage: 1.3V
  • Wavelength: 940nm
  • Product Type: Optoelectronic
  • Continuous Forward Current-Max: 65mA
  • Package: 2-SMD, no lead
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Supply and Demand Status: Sufficient
