Product Overview: LTC1562IG#PBF

The LTC1562IG#PBF is a high-performance Active RC Filter Building Block designed by Linear Technology, now part of Analog Devices. This versatile component offers a low noise, low distortion, and highly flexible solution for a wide range of filtering applications.

Key Features

• Adjustable Frequency Range: The LTC1562IG#PBF provides a wide frequency range that can be set by external resistors, offering designers the flexibility to create custom filter characteristics.
• Low Noise and Low Distortion: With its exceptional signal integrity, this active filter ensures minimal noise and distortion, making it ideal for precision applications such as audio processing, instrumentation, and communication systems.
• Multiple Filter Responses: The device can be configured to implement various filter responses such as low-pass, high-pass, band-pass, and notch filters, providing a single solution for multiple filtering needs.
• High Order Filters: The LTC1562IG#PBF can be cascaded to create high order filters without the need for external op-amps, simplifying the design and reducing component count.
• Single or Dual Supply Operation: It operates with a single 5V supply or dual ±5V supplies, offering design flexibility for different system requirements.

Applications

The LTC1562IG#PBF is suited for a variety of applications that require high-quality signal processing. These include:

• Telecommunications
• Data acquisition systems
• Audio processing equipment
• Anti-aliasing filters
• Medical equipment

Product Specifications

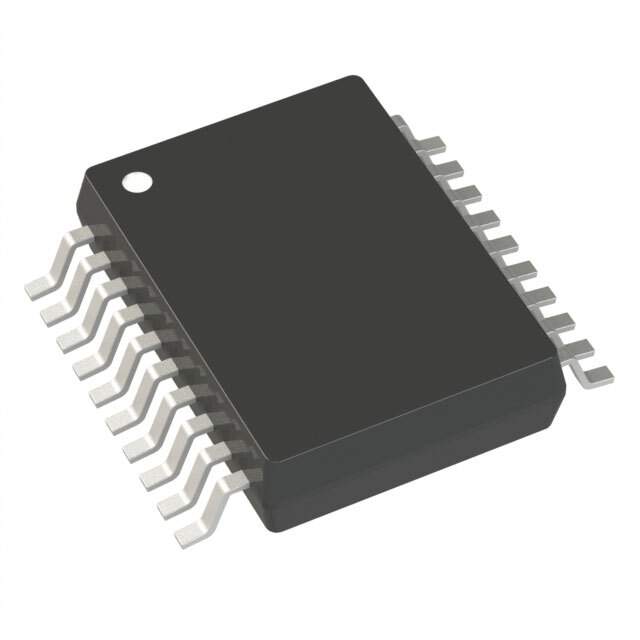

The LTC1562IG#PBF is available in a 20-lead SSOP package, ensuring a compact footprint suitable for space-constrained applications. It features a 140dB dynamic range for audio frequencies, making it one of the best in its class for signal filtering tasks. The device's operating temperature range of -40°C to 85°C allows for reliable performance across various environmental conditions.

Conclusion

With its combination of flexibility, performance, and ease of use, the LTC1562IG#PBF from Linear Technology is an excellent choice for designers seeking a high-quality active filter solution. Whether for professional audio, sensitive instrumentation, or any application requiring precise signal conditioning, this product delivers outstanding results.
