The LTC1562CG-2#TRPBF is an innovative active RC filter building block designed by Linear Technology, which offers a highly flexible and precise solution for a variety of filtering applications. This high-performance component is suitable for use in telecommunications, data communications, and other electronic systems requiring high-quality signal processing.

Key Features

• Adjustable Filter Configuration: The device can be configured for low-pass, high-pass, band-pass, or notch filters, providing versatility in its application.
• Low Noise and Distortion: It boasts low noise and low harmonic distortion characteristics, ensuring the integrity of the signal is maintained.
• High Linearity: With a high linearity performance, the LTC1562CG-2#TRPBF is capable of handling a wide dynamic range of input signals without distortion.
• Frequency Range: The filter's corner frequency can be set from 1Hz to 150kHz, making it suitable for a broad range of filtering tasks.
• Single or Dual Supply Operation: It can operate from a single 4V to 6V supply or a dual ±2V to ±3V supply, adding to its flexibility in system design.
• Low Power Consumption: The device is optimized for low power consumption, which is critical for battery-powered or energy-efficient systems.

Applications

The LTC1562CG-2#TRPBF is ideal for applications requiring precise and flexible filtering capabilities. It is commonly used in:

• Anti-aliasing filters for data acquisition systems
• Signal conditioning for telecommunications
• Audio processing equipment
• Instrumentation and control systems
• Active filter synthesis

Product Specifications

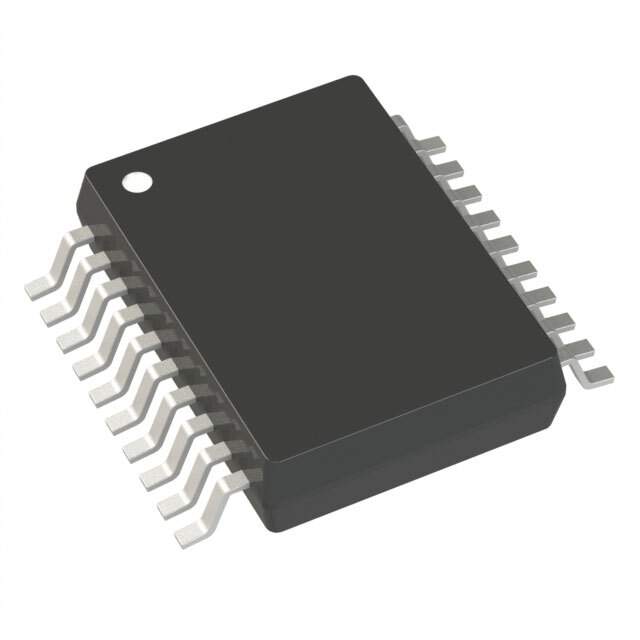

The LTC1562CG-2#TRPBF is provided in a compact SSOP-20 package, designed for surface mount technology (SMT). It is part of the LTC1562 series, known for its high-fidelity active filtering solutions. The product is available in tape and reel packaging, designated by the #TRPBF suffix, which facilitates automated assembly processes for high-volume production.

By integrating the LTC1562CG-2#TRPBF into your design, you can achieve a high level of performance in your filtering applications, with the added benefit of customization to meet specific system requirements.
