Product Overview: LTC1403ACMSE-1

The LTC1403ACMSE-1 is a high-performance, 14-bit analog-to-digital converter (ADC) from Linear Technology, designed to offer an optimal balance between speed and precision for a wide range of data acquisition applications. This ADC features a sampling rate of up to 2.8Msps, making it an excellent choice for applications that require both high-speed and high-resolution measurements.

Key Features

• Resolution and Speed: The LTC1403ACMSE-1 boasts a 14-bit resolution with a fast conversion rate of 2.8 million samples per second, ensuring detailed and rapid data capture.
• Low Power Consumption: Designed with power efficiency in mind, this ADC operates on a single 3V power supply and consumes only 13mW, making it suitable for battery-powered devices and portable applications.
• No External Reference Required: This ADC comes with an internal reference, eliminating the need for external components and simplifying the design process for system engineers.
• Easy Interface: It features a Serial Peripheral Interface (SPI) which allows for easy connection to microcontrollers and digital signal processors.

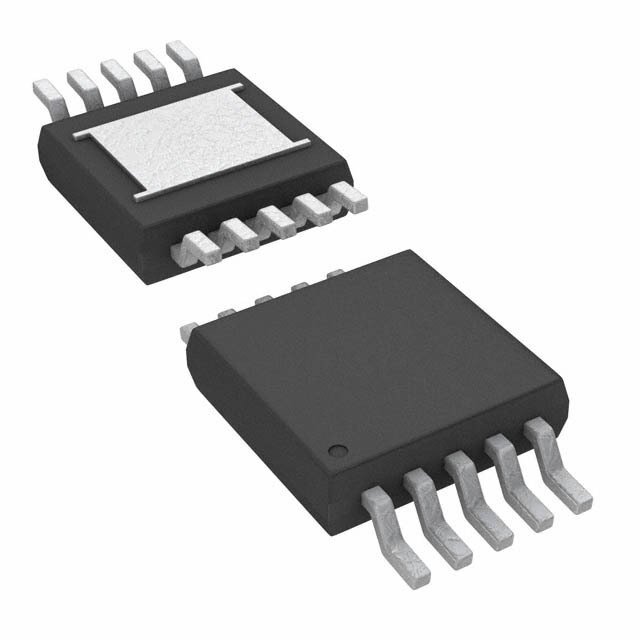

• Small Package: The LTC1403ACMSE-1 is available in a compact 10-lead MSOP package, making it ideal for space-constrained applications.
• Differential Input: The differential input structure provides improved noise immunity and allows for the measurement of bipolar signals, enhancing the versatility of the ADC.

Applications

The LTC1403ACMSE-1 is well-suited for a variety of applications that demand high-speed data acquisition without compromising on accuracy. This includes:

• Medical Imaging Systems
• Industrial Process Control
• High-speed Data Acquisition Systems
• Portable Instrumentation
• Communications Systems

Linear Technology's LTC1403ACMSE-1 is engineered to deliver top-notch performance with its high-speed operation and precision conversion capabilities. Its low power consumption and small footprint make it an excellent choice for designers looking to create compact, efficient systems that require reliable and accurate analog-to-digital conversion.
