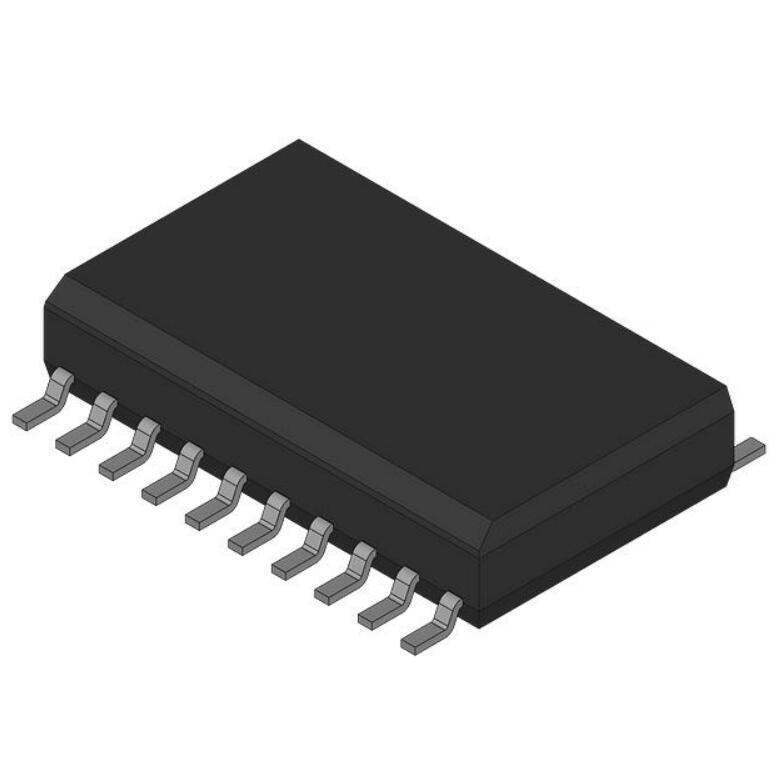

The LTC1296BCSW#PBF from Linear Technology is a high-performance, single-chip analog-to-digital converter (ADC) that provides a complete data acquisition system in a compact 20-lead small outline package. This precision ADC is designed for direct connection to a variety of sensors and microprocessors, making it an ideal choice for applications in industrial control systems, robotics, data loggers, and portable instrumentation.

Key Features

• Resolution: The LTC1296BCSW#PBF offers a 12-bit resolution, ensuring accurate and high-resolution data conversion for your applications.
• Sampling Rate: With a sampling rate of up to 46,000 samples per second, this device can handle high-speed data acquisition requirements.
• Single Supply Operation: It operates from a single 5V power supply, simplifying the system power design and reducing power consumption.
• Differential Inputs: The device features differential inputs, which enhances noise immunity and allows for precise measurement of small signal variations.
• Easy Interface: The LTC1296BCSW#PBF can be easily interfaced with most microprocessors. It also includes a serial I/O port for efficient data transfer.
• Software Programmable: Users can configure the ADC's operating modes and conversion rates through software, offering flexibility for various applications.

Applications

The LTC1296BCSW#PBF is versatile and can be used in a wide range of applications, including:

• Process Control and Automation
• Medical Equipment
• Portable Instruments
• Data Acquisition Systems
• Robotics

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LTC1296BCSW#PBF is no exception. It is built to meet high standards of performance and reliability, ensuring that it can withstand the demands of professional environments. Whether for industrial, medical, or consumer applications, this ADC offers the precision and durability needed for critical data acquisition tasks.
