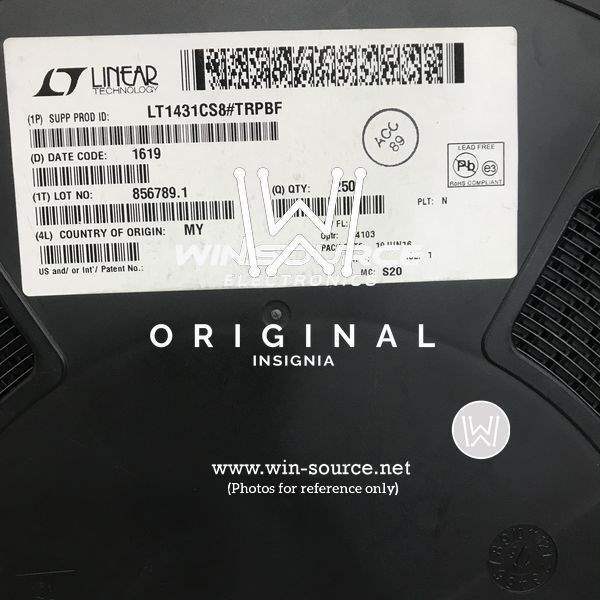

Linear Technology's LT1431CS8#TRPBF Adjustable Precision Shunt Regulator

The LT1431CS8#TRPBF is a versatile adjustable precision shunt regulator designed by Linear Technology, a leader in the field of analog integrated circuits. With a reference voltage tolerance of ±0.4% at 25°C and ±0.8% over the full operating temperature range, this component offers outstanding accuracy for a wide array of applications. Its adjustable output voltage spans from Vref (2.5V) up to 36V, making it suitable for various power regulation tasks.

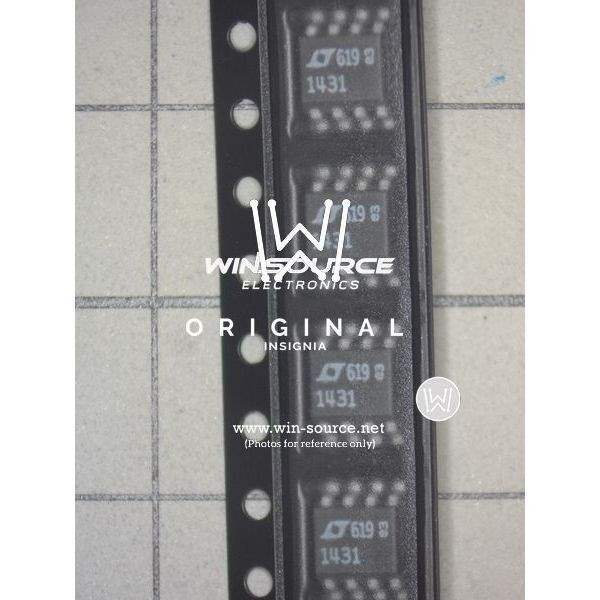

This shunt regulator comes in an 8-lead SOIC package, which is widely accepted in the industry for its compact footprint and ease of integration into a multitude of circuit designs. The LT1431CS8#TRPBF is characterized by its low dynamic output impedance of 0.22 ohms, ensuring stable voltage regulation even under changing load conditions. This feature, combined with its capability to source up to 100mA of sink current, makes it exceptionally reliable for maintaining consistent voltage levels.

The device is designed to be highly versatile, with the ability to operate as a replacement for zener diodes in many applications, offering superior temperature stability and lower voltage noise. It also features a trimmed bandgap reference, which allows for a very low, stable output voltage that is not significantly affected by variations in temperature.

For applications requiring precise voltage control, such as power supplies, digital calipers, battery chargers, and voltage monitoring systems, the LT1431CS8#TRPBF excels with its adjustable output and high accuracy. Its operating temperature range of -40°C to 85°C ensures reliable performance across a broad spectrum of environmental conditions.

Overall, the LT1431CS8#TRPBF shunt regulator from Linear Technology is a robust and precise component that provides designers with a reliable solution for adjustable voltage regulation needs. Its high accuracy, stability, and flexibility make it an ideal choice for a wide range of applications in the electronics industry.
