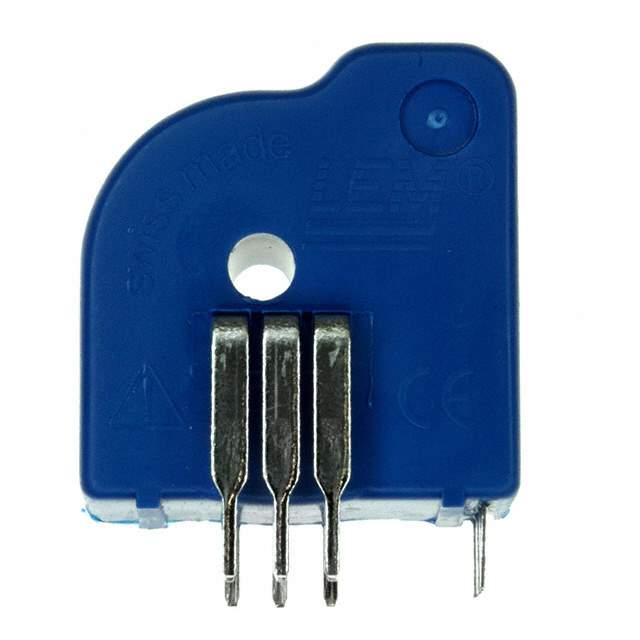

The LTSR 15-NP is a current transducer manufactured by LEM. It's designed for non-intrusive measurement of AC, DC, and pulsed currents in electronic circuits. It provides galvanic isolation between the primary current being measured and the output signal.

Applications

• Variable Speed Drives
• Robotics
• Uninterruptible Power Supplies (UPS)
• Welding Equipment
• Power Inverters
• Battery Management Systems

Features

• Closed Loop (Compensated) Current Transducer
• Galvanic Isolation between primary and secondary circuits
• Current measuring range: ±15 A
• Supply Voltage: ±15 V DC
• Output Signal: Current output
• Accuracy: ±1%
• Bandwidth: Up to 200 kHz

Benefits

• Non-Intrusive Measurement: Measures current without breaking the circuit, simplifying installation and minimizing disruption.
• Galvanic Isolation: Provides electrical isolation between the primary conductor and the measurement circuit, ensuring safety and preventing ground loops.
• High Accuracy: Provides accurate current measurements, essential for precise control and monitoring applications.
• Wide Bandwidth: Capable of measuring both DC and AC currents with frequencies up to 200 kHz.
• Compact Size: Allows for easy integration into existing systems.

Additional Details

The LTSR 15-NP is a closed-loop current transducer that utilizes the Hall effect to accurately measure current. The measured current flowing through the primary conductor generates a magnetic field, which is sensed by the Hall sensor. The sensor output is then processed by the internal electronics to produce a proportional output current. The galvanic isolation is achieved through the use of a magnetic core. The device is designed for PCB mounting. Its low temperature drift ensures stable performance over a wide temperature range. The LTSR 15-NP is commonly used in motor control applications to provide feedback for precise motor speed and torque control. The transducer’s fast response time makes it suitable for dynamic current measurement applications.
