Same model may have multiple batches, images only for reference.

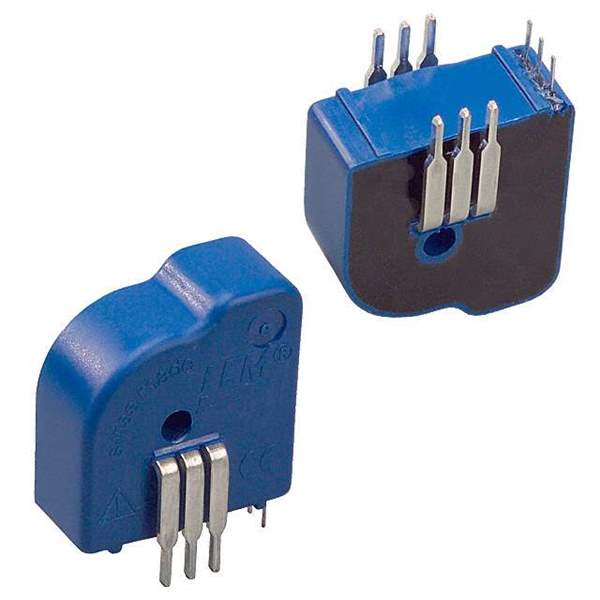

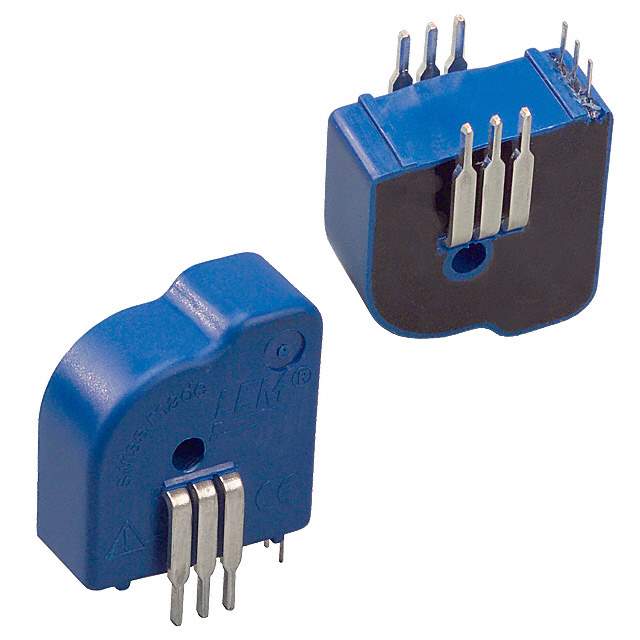

LTS 6-NP Real Image
Same model may have multiple batches, images only for reference.

LTS 6-NP

Part No LTS 6-NP
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description AC/DC Current Transducer / SENSOR CURRENT HALL 6A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer LEM USA Inc.
Series LTS
Packaging Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 6A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 104.16mV/A
Frequency DC ~ 200kHz
Linearity ±0.1%
Accuracy ±0.2%
Operating Supply Voltage 5V
Response Time 0.4μs
Operating Temperature Range -40°C ~ 85°C
Polarization Bidirectional
Mounting Style Through Hole
Package Ring Opening 0.126" Dia, 6 Leads
Win Source Part Number 784688-LTS 6-NP
Popularity Medium
Supply and Demand Status Limited
Family Name LTS6-NP
Introduction Date December 11, 2000
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian LTS 6-NP CAD Model

Description

This electronic component is a sensor manufactured by LEM USA Inc. with a Win Source Part Number of 784688-LTS 6-NP.

  • Series: LTS
  • Sensor Type: AC/DC current
  • Sensitivity: 104.16mV/A
  • Polarization: Bidirectional
  • Operating Temperature Range: -40°C to 85°C
  • Response Time: 0.4μs
  • Frequency Range: DC to 200kHz
