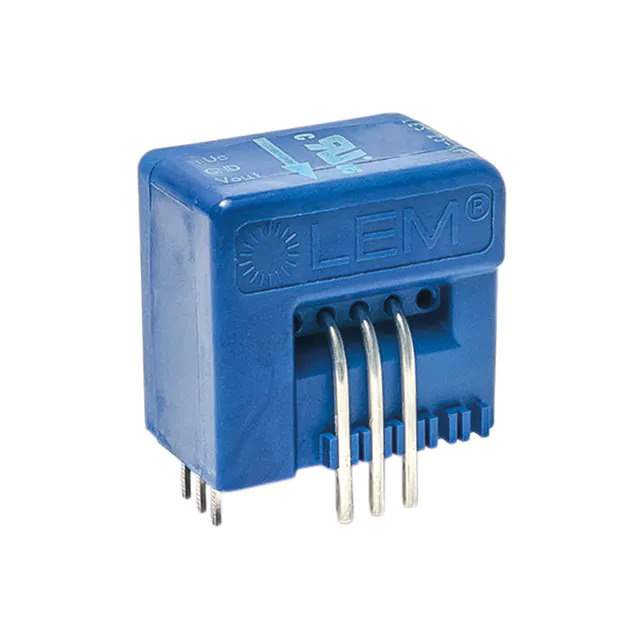

LES 50-NP Real Image
Same model may have multiple batches, images only for reference.

LES 50-NP

Part No LES 50-NP
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 50A UNIPOLAR / Current Sensor 50A 1 Channel Hall Effect, Closed Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr LEM USA Inc.
Series LES
Package Tray
Product Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 50A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 12.5mV/A
Frequency 300kHz
Linearity ±0.1%
Accuracy ±2.25%
Voltage - Supply 4.75V ~ 5.25V
Response Time 400ns
Current - Supply (Max) 45mA
Temperature Range - Operating -40°C ~ 105°C (TA)
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 922920-LES 50-NP
Ultra Librarian 3D Model Ultra Librarian LES 50-NP CAD Model

Description

The 922920-LES 50-NP is a current sensor designed for measuring AC/DC current up to 50A.

  • Current Range: Up to 50A AC/DC
  • Sensor Type: Closed-loop Hall effect
  • Supply Voltage: 4.75V to 5.25V
  • Supply Current (Max): 45mA
  • Response Time: 400ns
  • Output: Ratiometric, Voltage-based
  • Polarization: Bidirectional
  • Package: Module
  • Temperature Range: -40°C to 105°C
  • Manufacturer: LEM USA Inc.
  • Part Status: Active
