Same model may have multiple batches, images only for reference.

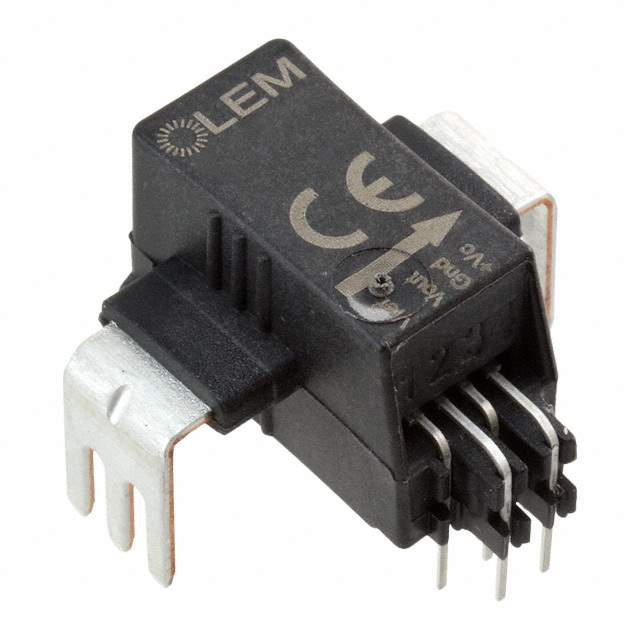

HLSR 10-P Real Image
Same model may have multiple batches, images only for reference.

HLSR 10-P

Part No HLSR 10-P
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 10A AC/DC  /  Current Sensor 10A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr LEM USA Inc.
Series HLSR-P
Package Tray
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 10A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 80mV/A
Frequency 400kHz
Linearity ±0.5%
Accuracy ±1%
Voltage - Supply 5V
Response Time 2.5µs
Current - Supply (Max) 25mA
Temperature Range - Operating -40°C ~ 105°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Names 398-1121,HLSR10P,90.J3.13.000.0
Standard Package 50
Win Source Part Number 1172515-HLSR 10-P
Ultra Librarian 3D Model Ultra Librarian HLSR 10-P CAD Model

Description

The HLSR 10-P from LEM USA Inc. is a high-performance current sensor that is designed for use in a variety of electronic circuits.

  • Sensitivity: 80 mV/A
  • Linearity Error: ±0.5%
  • Accuracy: ±1%
  • Temperature Range: -40°C to 105°C
