CKSR 6-NP Real Image CKSR 6-NP Real Image
Same model may have multiple batches, images only for reference.

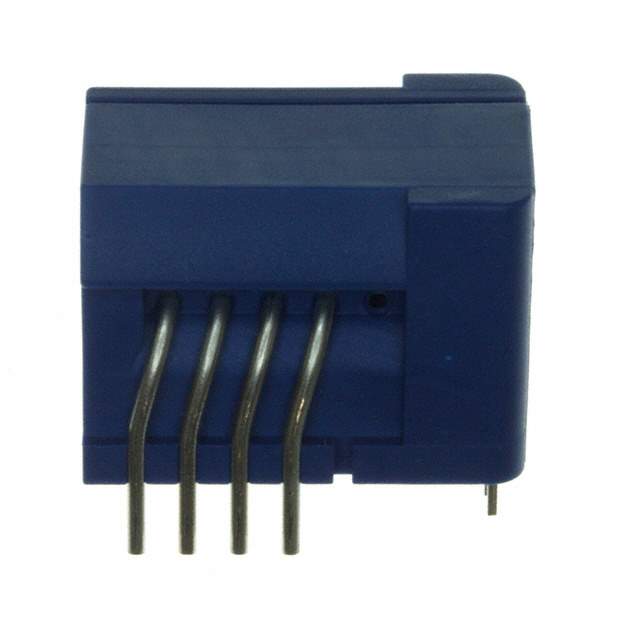

CKSR 6-NP Real Image CKSR 6-NP Real Image
CKSR 6-NP Real Image CKSR 6-NP Real Image
Same model may have multiple batches, images only for reference.

CKSR 6-NP

Part No CKSR 6-NP
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT FLUX 6A AC/DC
Datasheet
CKSR 6-NP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 23 Weeks
Features Current Sensor 6A 1 Channel Flux Gate, Closed Loop Bidirectional Module
Manufacturer LEM USA Inc.
Series CKSR
Package Tray
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole
Package Module
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Part Number 398-1095, 398-1095-5, 398-1095-5-ND, 90.E7.09.000.7, CKSR6NP
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866495-CKSR 6-NP
Ultra Librarian 3D Model Ultra Librarian CKSR 6-NP CAD Model

Description

The CKSR 6-NP from LEM USA Inc is a medium popularity current sensor with closed-loop bidirectional module features.

  • Current Rating: 6A
  • Operating Temperature: -40°C ~ 105°C
  • Package: Tray
  • Mounting Type: Through Hole
  • HTSUS Code: 9030.33.3800
  • Other Part Numbers: 398-1095, 398-1095-5, 398-1095-5-ND, 90.E7.09.000.7, CKSR6NP
  • Production Lead Time: 23 weeks
  • REACH: Unaffected
  • Quantity per Package: 50
  • MSL Level: Not Applicable
