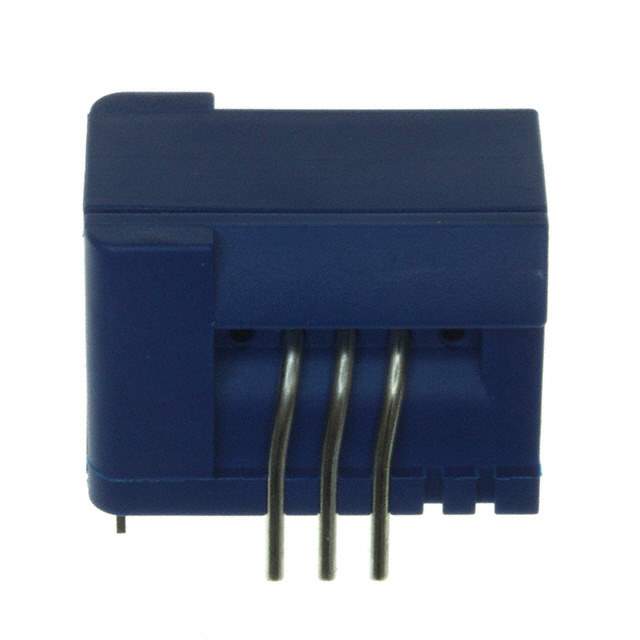

CAS 6-NP Real Image
Same model may have multiple batches, images only for reference.

CAS 6-NP

Part No CAS 6-NP
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT FLUX 6A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer LEM USA Inc.
Series CAS
Packaging Tray
For Measuring AC/DC
Sensor Type Flux Gate, Closed Loop
Current - Sensing 6A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 104.2mV/A
Frequency 300kHz
Linearity ±1%
Accuracy ±0.8%
Operating Supply Voltage 4.75 V ~ 5.25 V
Response Time 0.3μs
Maximum Supply Current 20mA
Operating Temperature Range -40°C ~ 85°C
Polarization Bidirectional
Mounting Style Through Hole
Package Module
Win Source Part Number 771150-CAS 6-NP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CAS 6-NP CAD Model

Description

The LEM USA Inc. CAS series flux gate, closed-loop sensor is an accurate and reliable AC/DC current sensor.

  • Sensitivity: 104.2mV/A
  • Maximum Current: 6A
  • Accuracy: ±0.8%
  • Linearity: ±1%
  • Response Time: 0.3μs
  • Frequency: 300kHz
  • Output: Ratiometric Voltage
  • Maximum Supply Current: 20mA
  • Operating Voltage: 4.75 V to 5.25 V
  • Mounting Type: Through Hole
  • Package: Module
