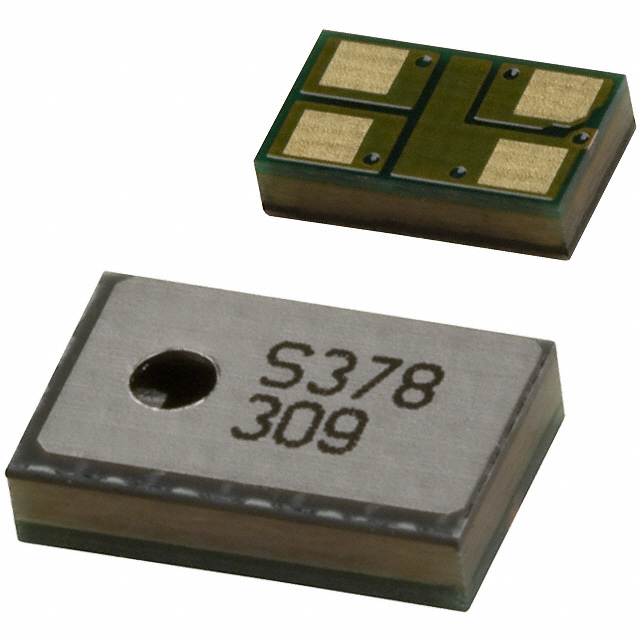

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Audio Products
Manufacturer Knowles
Packaging Cut Reel
Status Obsolete(EOL)
Type MEMS (Silicon)
Output Type Analog
Direction Omnidirectional
Frequency Range 100Hz to 10kHz
Sensitivity -22dB ±4dB @ 94dB SPL
S/N Ratio 59dB
Impedance 100 Ohm
Voltage Range 1.5 to 5.5V
Operating Supply Current 350μA
Port Location Top
Termination Surface Mount
Height (Max) 0.063" (1.60mm)
Shape Rectangular
Win Source Part Number 109693-SP0103NC3-2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SP0103NC3-2 CAD Model

Description

The Knowles MEMS (Silicon) microphone is a high-quality audio component designed for use in various applications.

  • Termination: It features a surface mount termination
  • Voltage Range: and a voltage range of 1.5 to 5.5V.
  • Impedance/Frequency: The microphone has an impedance of 100 Ohm and a frequency range of 100Hz to 10kHz, making it ideal for capturing clear and detailed audio.
  • Direction: It has an omnidirectional direction
  • Sensitivity: and a sensitivity of -22dB ±4dB @ 94dB SPL.
  • S/N Ratio: The S/N ratio is 59dB, ensuring that the audio captured is of high quality.
  • Packaging/Height: The microphone is packaged in a cut reel and has a height of 0.063" (1.60mm).
  • Category/Status: This product is categorized under Audio Products and is now obsolete(EOL).
  • Supply/Demand: The supply and demand status is limited, making it a valuable component to have.
