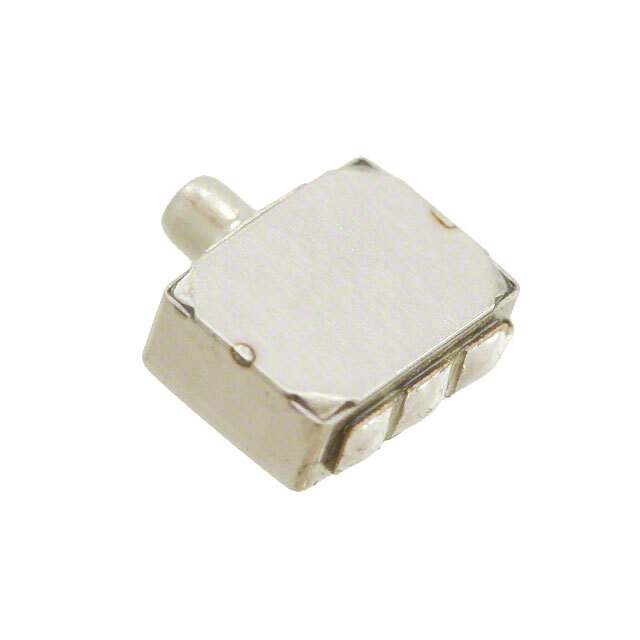

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Audio Products
Manufacturer Knowles
Series EA
Packaging Bulk
Type Electret Condenser
Output Type Analog
Direction Omnidirectional
Frequency Range 100Hz ~ 5kHz
Sensitivity -59dB ±3dB @ 74dB SPL
Impedance 3.5 kOhm
Voltage Rating DC 1.3V
Operating Supply Current 50μA
Port Location Top
Termination Solder Pads
Dimension 0.219" L x 0.157" W (5.56mm x 3.99mm)
Height (Maximum) 0.089" (2.26mm)
Shape Rectangular
Win Source Part Number 766666-EA-21986-000
Popularity Medium
Supply and Demand Status Limited
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian EA-21986-000 CAD Model

Description

This Knowles electret condenser is a rectangular-shaped component with an omnidirectional directionality.

  • Type: Electret Condenser
  • Shape: Rectangular
  • Directionality: Omnidirectional
  • Sensitivity: -59dB ±3dB @ 74dB SPL
  • Impedance: 3.5 kOhm
  • Frequency Range: 100Hz to 5kHz
  • Output Type: Analog
  • Voltage: 1.3V DC
  • Height: 0.089" (2.26mm)
  • Packaging: Bulk
  • Popularity: Medium
  • Supply and Demand: Limited
  • Quantity per Package: 25
