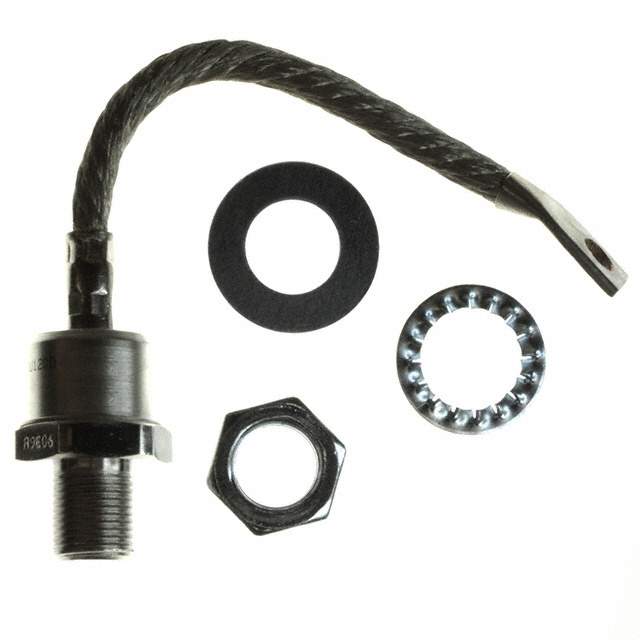

VS-SD400N24PC Real Image
Same model may have multiple batches, images only for reference.

VS-SD400N24PC

Part No VS-SD400N24PC
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 2.4KV 400A DO205 / Diode Standard 2400 V 400A Stud Mount DO-205AB (DO-9)
Datasheet
VS-SD400N24PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 2400 V
Current - Average Rectified (Io) 400A
Voltage - Forward (Vf) (Max) @ If 1.62 V @ 1500 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 15 mA @ 2400 V
Mounting Stud Mount
Case / Package DO-205AB, DO-9, Stud
Supplier Device Package DO-205AB (DO-9)
Operating Temperature - Junction -40°C ~ 190°C
Base Product Number SD400
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number SD400N24PC,VS-SD400N24PCGI,VSSD400N24PC,VSSD400N24PC-ND,*SD400N24PC,SD400N24PC-ND,VS-SD400N24PC-ND
Standard Package 12
Win Source Part Number 1325818-VS-SD400N24PC
Ultra Librarian 3D Model Ultra Librarian VS-SD400N24PC CAD Model

Description

The VS-SD400N24PC is a standard recovery diode manufactured by Vishay General Semiconductor - Diodes Division.

  • Maximum DC Reverse Voltage: 2400V
  • Average Rectified Current: 400A
  • Mounting: Stud
  • Standard Package: 12
  • Packaging: Bulk
  • Standard Recovery: Greater than 500ns and greater than 200mA
  • REACH: Unaffected
  • ECCN: EAR99
