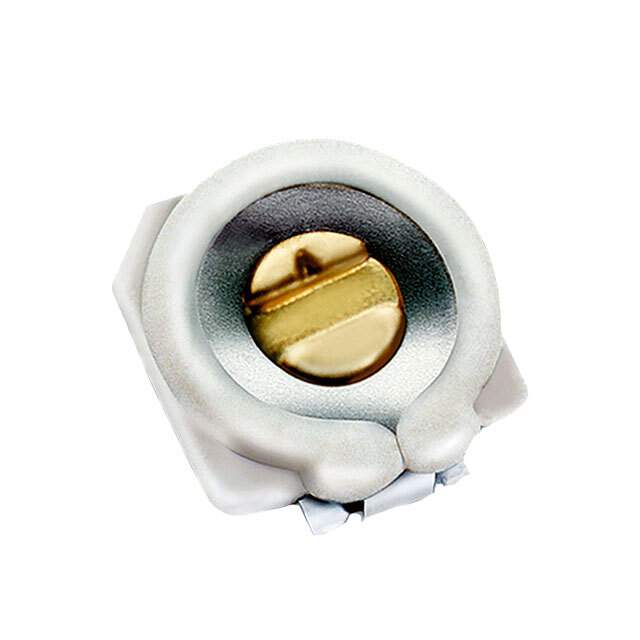

JR200 Real Image
Same model may have multiple batches, images only for reference.

JR200

Part No JR200
Manufacturer Knowles Voltronics
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 4.5-20PF 125V SMD / 4.5 ~ 20pF Trimmer Capacitor 125 V Top Surface Mount
Datasheet
JR200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Trimmers, Variable Capacitors
Manufacturer Knowles Voltronics
Packaging Reel - TR
Capacitance Range 4.5 ~ 20pF
Adjustment Type Top
Voltage - Rated 125 V
Dielectric Material Ceramic
Q @ Freq 1500 @ 1MHz
Size / Dimension 0.138" L x 0.122" W (3.50mm x 3.10mm)
Height - Seated (Max) 0.045" (1.15mm)
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Features General Purpose
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.30.0010
Other Part Number 1674-1019-1,1674-1019-2,1674-1019-6
Standard Package 1,000
Win Source Part Number 1329122-JR200
Ultra Librarian 3D Model Ultra Librarian JR200 CAD Model

Description

The Knowles Voltronics 1329122-JR200 is a surface mount, variable capacitor with a capacitance range of 4.5 to 20 pF. It has a voltage rating of 125 V and a Q of 1500 at 1 MHz. This ceramic dielectric capacitor operates in a temperature range of -40°C to 85°C.
