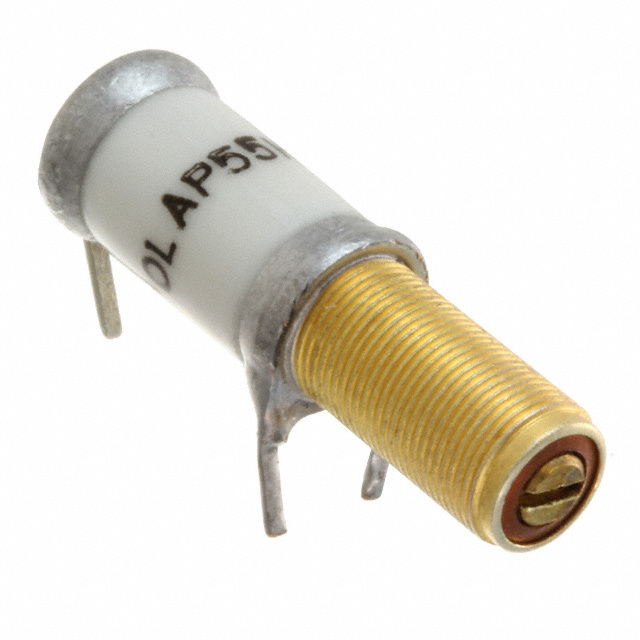

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Capacitance Range 3 ~ 10pF
Adjustment Type Top
Voltage - Rated 100 V
Dielectric Material Ceramic
Q @ Freq 300 @ 1MHz
Size / Dimension 0.236" Dia (6.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Through Hole
Features General Purpose
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1527102-GKG10015
Ultra Librarian 3D Model Ultra Librarian GKG10015 CAD Model
