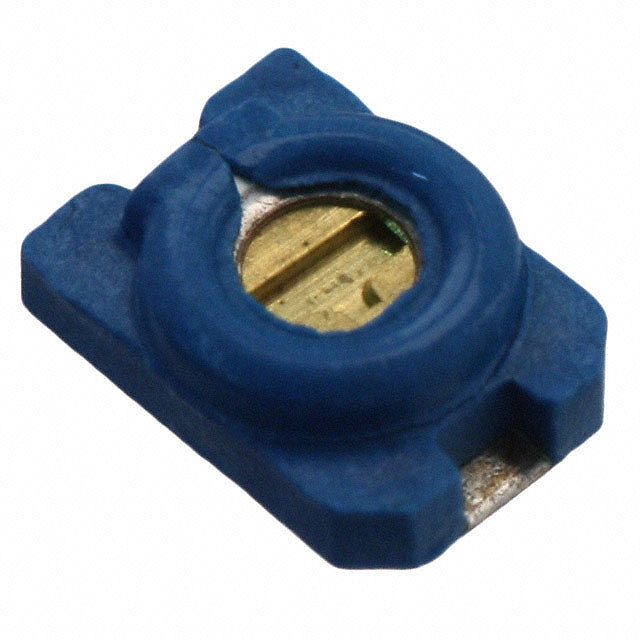

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Capacitance Range 1.5 ~ 3pF
Adjustment Type Top
Voltage - Rated 100 V
Dielectric Material Ceramic
Q @ Freq 300 @ 1MHz
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.061" (1.54mm)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Features Low Profile
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1527147-SGC3S030
Ultra Librarian 3D Model Ultra Librarian SGC3S030 CAD Model
