Same model may have multiple batches, images only for reference.

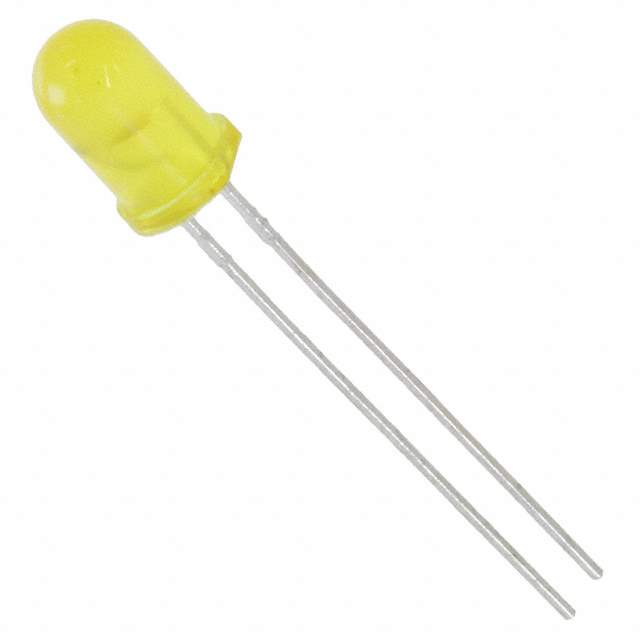

WP7113YD Real Image
Same model may have multiple batches, images only for reference.

WP7113YD

Part No WP7113YD
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED YELLOW DIFFUSED T-1 3/4 T/H / Yellow 588nm LED Indication - Discrete 2.1V Radial
Datasheet
WP7113YD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Bulk
Color Yellow
Configuration Standard
Lens Color Yellow
Lens Transparency Diffused
Millicandela Rating 25mcd
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 30°
Mounting Type Through Hole
Wavelength - Dominant 588nm
Wavelength - Peak 590nm
Package / Case Radial
Supplier Device Package T-1 3/4
Height (Max) 8.60mm
Base Product Number WP7113
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1284
Standard Package 1,000
Win Source Part Number 1039945-WP7113YD
Ultra Librarian 3D Model Ultra Librarian WP7113YD CAD Model

Description

The WP7113YD is a yellow LED indication from Kingbright.

  • Color: Yellow
  • Mounting Type: Through-hole
  • Viewing Angle: 30°
  • Lens Color: Yellow
  • Lens Transparency: Diffused
  • Millicandela: 25mcd
  • Voltage-Forward (Vf): 2.1V
  • Peak Wavelength: 590nm
  • Dominant Wavelength: 588nm
  • Height: 8.60mm
  • Lens Size: 5mm, T-1 3/4
  • Package: Radial
  • Standard Package: 1,000 pieces
