Same model may have multiple batches, images only for reference.

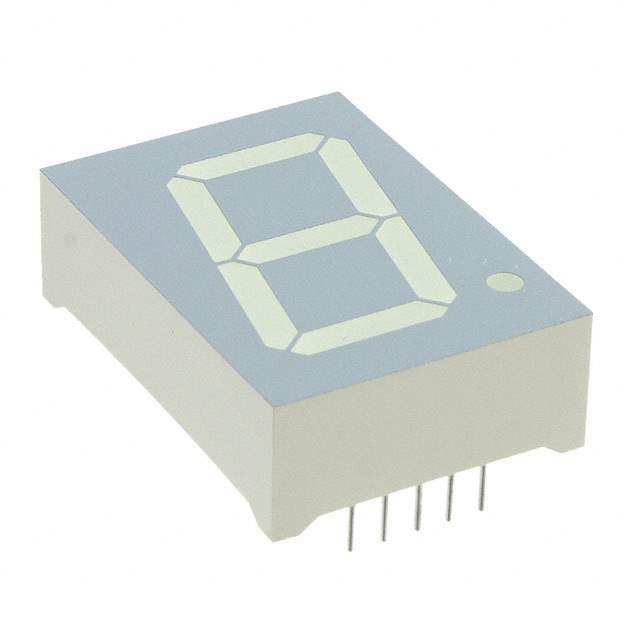

SC10-21SRWA Real Image
Same model may have multiple batches, images only for reference.

SC10-21SRWA

Part No SC10-21SRWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 1" SGL RED 10DIP / Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 3.7V 20mA 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) 10-DIP (1.200", 30.48mm)
Datasheet
SC10-21SRWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Product Status Obsolete
Number of Characters 1
Dimension 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm)
Digit/Alpha Size 1.00" (25.40mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) (Typ) 3.7V
Current - Test 20mA
Millicandela Rating 120mcd
Wavelength - Peak 660nm
Power Dissipation (Max) 150mW
Package / Case 10-DIP (1.200", 30.48mm)
Base Product Number SC10-21
Other Names 754-1700-5,SC10-21SRWA
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242559-SC10-21SRWA
Ultra Librarian 3D Model Ultra Librarian SC10-21SRWA CAD Model

Description

The Kingbright SC10-21SRWA LED display module is a 7-segment, 1-character display that is perfect for use in a variety of electronic applications.

  • Color: Red
  • Millicandela Rating: 120mcd
  • Forward Voltage: 3.7V
  • Test Current: 20mA
  • Peak Wavelength: 660nm
  • Common Pin: Common Cathode
  • Digit/Alpha Size: 1.00" (25.40mm)
  • Package/Case: 10-DIP (1.200", 30.48mm)
  • Overall Dimensions: 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm)
  • Status: Obsolete
  • Package: Tube (20 units)
