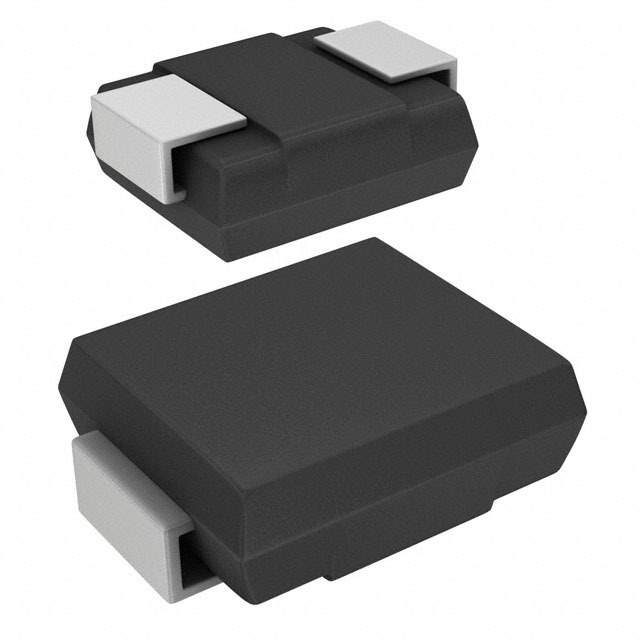

S3M_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

S3M_R1_00001

Part No S3M_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description SMC, GENERAL / Diode Standard 1000 V 3A Surface Mount SMC (DO-214AB)
Datasheet
S3M_R1_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Panjit International Inc.
Packaging Reel - TR
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 3 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 µA @ 1000 V
Capacitance @ Vr, F 53pF @ 4V, 1MHz
Mounting Surface Mount
Case / Package DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
Operating Temperature - Junction -55°C ~ 150°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 3757-S3M_R1_00001TR,3757-S3M_R1_00001CT,3757-S3M_R1_00001DKR
Standard Package 800
Win Source Part Number 1325747-S3M_R1_00001
Ultra Librarian 3D Model Ultra Librarian S3M_R1_00001 CAD Model

Description

The S3M_R1_00001 is a surface mount diode type rectifier from Panjit International Inc.

  • Maximum DC Reverse Voltage: 1000V
  • Average Rectified Current: 3A
  • Forward Voltage: 1.2V @ 3A
  • Reverse Leakage Current: 1 microampere @ 1000V
  • Capacitance @ Vr, F: 53pF @ 4V, 1MHz
  • Operating Temperature Range: -55℃ to 150℃
  • Package: SMC (DO-214AB)
