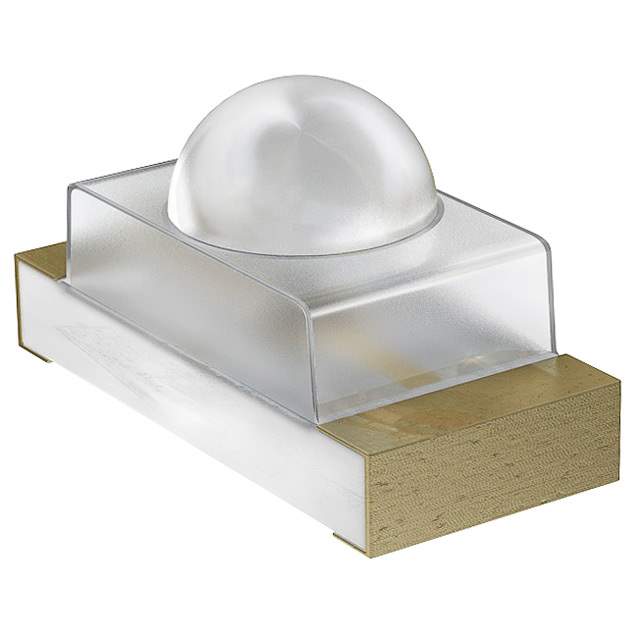

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 250mcd
Lens Style Round with Domed Top
Lens Size 0.70mm Dia
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 20mA
Viewing Angle 60°
Mounting SMD (SMT)
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Package / Case 0603 (1608 Metric)
Supplier Device Package Chip LED
Dimension 1.60mm L x 0.80mm W
Height (Max) 1.10mm
Base Product Number APTD1608
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1541-1,754-1541-2,754-1541-6,Q6855890
Standard Package 2,000
Win Source Part Number 983830-APTD1608SURCK
Ultra Librarian 3D Model Ultra Librarian APTD1608SURCK CAD Model

Description

The Kingbright APTD1608SURCK LED is a high-quality LED with a viewing angle of 60° and a millicandela rating of 250mcd.

  • Viewing Angle: 60°
  • Millicandela Rating: 250mcd
  • Voltage-Forward (Vf): 1.95V
  • Current: 20mA
  • Light Color: Red
  • Dominant Wavelength: 630nm
  • Peak Wavelength: 645nm
  • Package Size: 0603 (1608 Metric)
  • Packaging: Tape and Reel
  • LEDs per Package: 2000
  • Lens Style: Round with a Domed Top
  • Lens Size: 0.70mm Diameter
