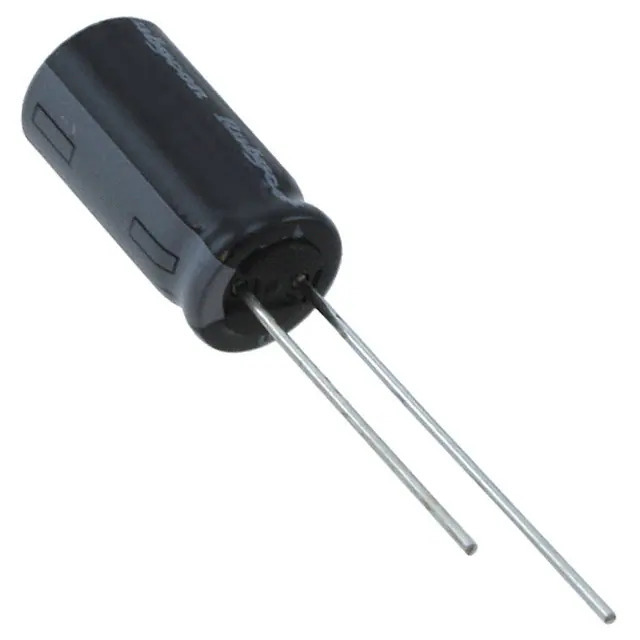

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXG
Package Tape & Box (TB)
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 462 mA @ 120 Hz
Impedance 87 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358135-16YXG470MEFCT78X16
Ultra Librarian 3D Model Ultra Librarian 16YXG470MEFCT78X16 CAD Model

Description

The Rubycon YXG series capacitors are aluminum electrolytic capacitors with a capacitance of 470 µF and made by Rubycon.

  • Capacitance: 470 µF
  • Voltage - Rated: 16 V
  • Tolerance: ±20%
  • Applications: General Purpose
  • Ripple Current @ Low Frequency: 462 mA @ 120 Hz
  • Lifetime @ Temp.: 4000 Hrs @ 105°C
  • Lead Spacing: 0.138" (3.50mm)
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Height - Seated (Max): 0.689" (17.50mm)
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C ~ 105°C
  • Polarization: Polar
  • Impedance: 87 mOhms
  • Packaging: Tape & Box (TB)
  • Status: Active
  • REACH: Unaffected
  • ESR (Equivalent Series Resistance): Not Specified
