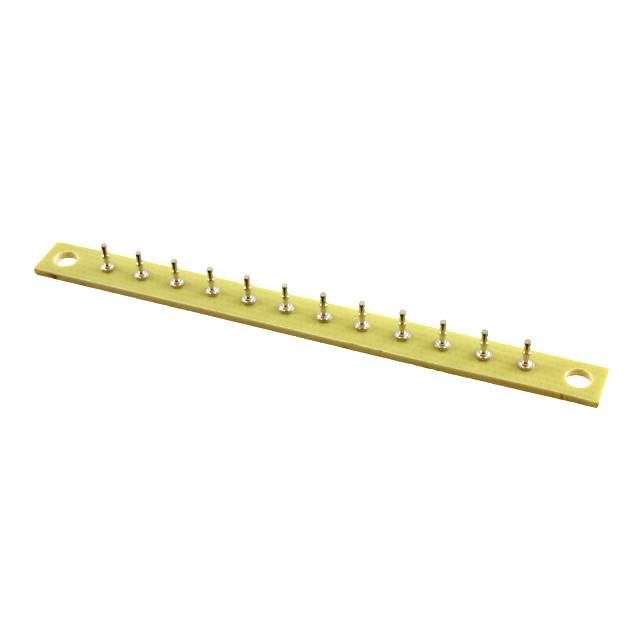

15532 Real Image
Same model may have multiple batches, images only for reference.

15532

Part No 15532
Manufacturer Keystone Electronics
Catalog Misc Products
Description TURRET BOARD 12POS 0.25" SINGLE
Datasheet
15532 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Strips and Turret Boards
Mfr Keystone Electronics
Package Bulk
Product Status Active
Type Turret Board
Terminal Type Turret, Single End, Double Turret
Number of Positions 12
Number of Rows 1
Board Size 3.687" L x 0.312" W x 0.062" H (93.60mm x 7.90mm x 1.57mm)
Material - Board Glass Epoxy
Features Miniature Strip
Contact Finish Tin
Contact Material Brass
Mounting Hole Diameter 0.144" (3.66mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 538625-15532
Ultra Librarian 3D Model Ultra Librarian 15532 CAD Model

Description

The Turret Board is a versatile component used in connectors and terminal strips. Keystone Electronics manufactures it.

  • Design: Miniature strip
  • Positions: 12
  • Rows: Single
  • Material: Glass epoxy
  • Mounting Hole Diameter: 0.144" (3.66mm)
  • Contact Finish: Tin
  • Contact Material: Brass
  • Board Size: 3.687" L x 0.312" W x 0.062" H (93.60mm x 7.90mm x 1.57mm)
  • Package: Bulk
  • Standard Package: 1 piece
  • Status: Active
