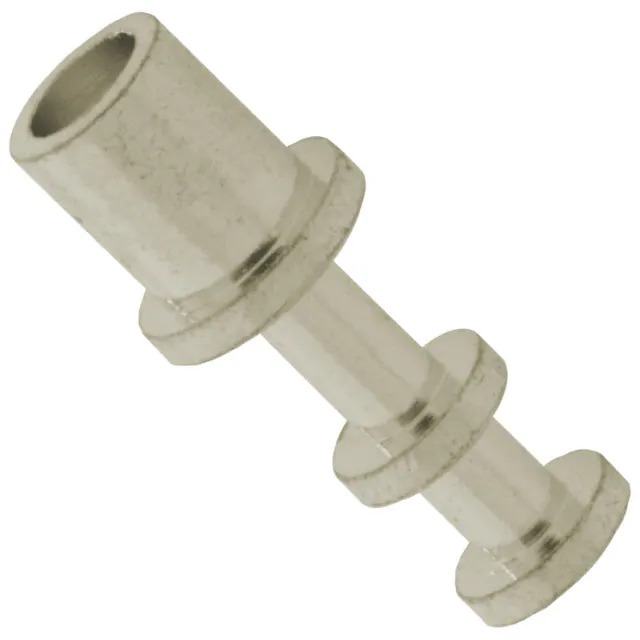

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Turret Connectors
Mfr Keystone Electronics
Series -
Package Bulk
Product Status Active
Terminal Type Single End
Number of Turrets Double
Length - Above Board 0.219" (5.56mm)
Length - Below Flange 0.109" (2.77mm)
Length - Overall 0.328" (8.33mm)
Mounting Type Through Hole
Termination Staking Flare
Flange Diameter 0.125" (3.18mm)
Diameter - Turret Head 0.093" (2.36mm)
Staking Side OD 0.090" (2.29mm)
Staking Side ID -
Mounting Hole Diameter 0.094" (2.39mm)
Board Thickness 0.062" (1.57mm)
Contact Material Brass
Contact Finish Tin
Contact Finish Thickness -
Insulation Non-Insulated
Material - Insulation -
Insulation Color -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363995-1502-2
Ultra Librarian 3D Model Ultra Librarian 1502-2 CAD Model

Description

The Keystone Electronics Turret Connector is a reliable and durable component designed for use in various electronic applications.

  • Mounting Type: Through Hole
  • Contact Finish: Tin
  • Contact Material: Brass
  • Insulation: Non-Insulated
  • Length: 0.328" (8.33mm)
  • Design: Double Turret
  • Flange Diameter: 0.125" (3.18mm)
  • Mounting Hole Diameter: 0.094" (2.39mm)
  • Board Thickness: 0.062" (1.57mm)
  • Terminal Type: Single-End
  • Termination: Staking Flare
