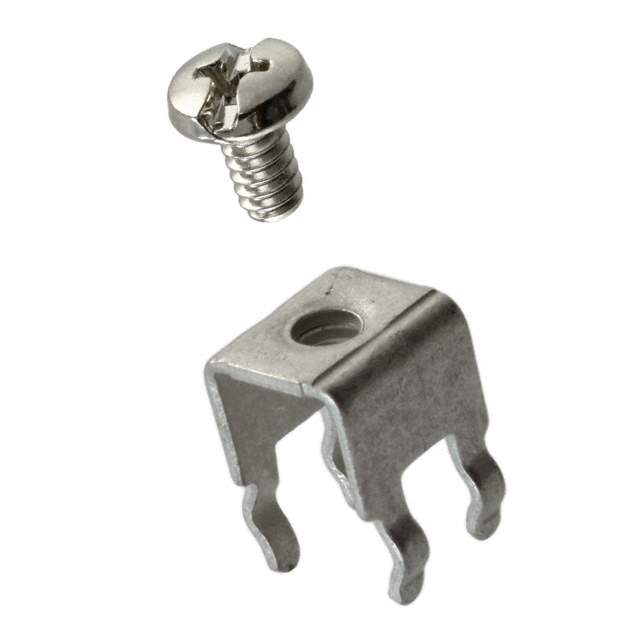

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Screw Connectors
Manufacturer Keystone Electronics
Packaging Bulk
Terminal Type Screw Terminal, Power Tap
Screw Size 6-32
Termination Snap-Fit
Current Rating (Amps) 15 A
Number of Pins 4
Mounting Through Hole
Contact Finish Tin
Contact Material Brass
Screw Material Brass
Screw Finish Nickel
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 7691K,7691K-ND,36-7691,7691K-NDR
Standard Package 10
Win Source Part Number 1333822-7691
Ultra Librarian 3D Model Ultra Librarian 7691 CAD Model

Description

The Keystone Electronics 1147275 is a 4-pin screw connector that is perfect for various applications.

  • Manufacturer: Keystone Electronics
  • Packaging: Bulk
  • Supply and Demand: Limited
  • Standard Package: 10
  • ECCN: EAR99 compliant
  • REACH: Unaffected
  • RoHS3 Compliant: Yes
  • Screw Material: Brass
  • Screw Finish: Nickel
