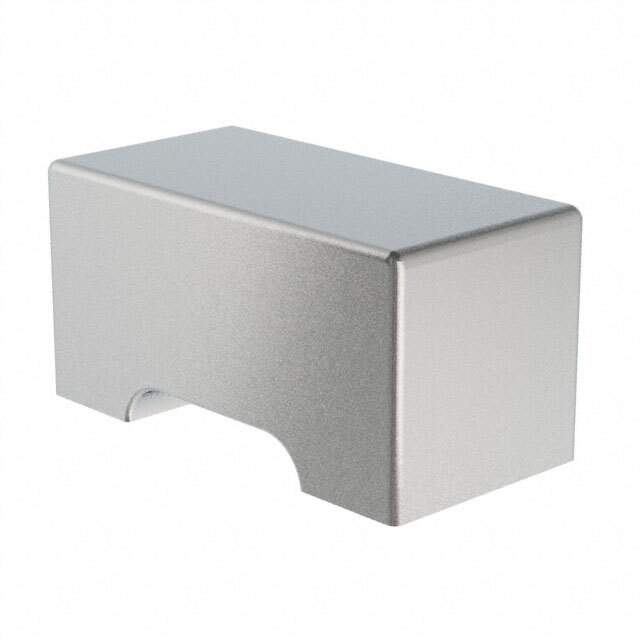

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Keystone Electronics
Package Tape & Reel
Product Status Active
Resistance 0 Ohms
Tolerance Jumper
Composition Metal Element
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.020" (0.50mm)
Number of Terminations 2
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1329053-5112
Ultra Librarian 3D Model Ultra Librarian 5112 CAD Model

Description

The 1329053-5112 is a chip resistor designed for surface mount applications.

  • Size: 0402 (1005 Metric)
  • Resistance: 0 Ohms
  • Composition: Metal Element
  • Terminations: 2
  • Active: Yes
  • Packaging: Tape and Reel
  • Standard Package: 1,000 pieces
  • Manufacturer: Keystone Electronics
