Same model may have multiple batches, images only for reference.

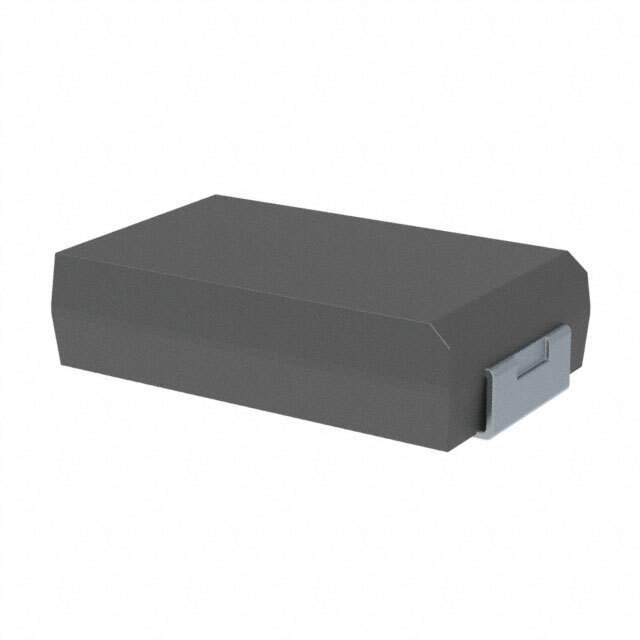

T520V686M010ATE045 Real Image
Same model may have multiple batches, images only for reference.

T520V686M010ATE045

Part No T520V686M010ATE045
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 68UF 10V 2917 / Cap Tant Polymer 68uF 10VDC V CASE 20% (7.3 X 4.3 X 1.8mm) SMD 7343-19 0.045 Ohm 105°C T/R
Datasheet
T520V686M010ATE045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel package
Capacitance 68μF
Tolerance ±20%
Voltage Rating DC 10V
Type Molded
ESR (Equivalent Series Resistance) 45 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.075" (1.90mm)
Manufacturer Size Code V
Features General
Win Source Part Number 796153-T520V686M010ATE045
Popularity Medium
Supply and Demand Status Balance
Family Name T520
Introduction Date September 27, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian T520V686M010ATE045 CAD Model

Description

The Kemet KO-CAP T520 series capacitor is a molded, SMD mounted capacitor. Kemet

  • Capacitance: 68μF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • ESR: 45 mOhm
  • Lifetime at Temperature: 2000 Hrs @ 105°C
  • Manufacturer Size Code: V
  • Introduction Date: September 27, 2011
  • Operating Temperature Range: -55°C to 105°C
  • Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Supply and Demand Status: Balanced
