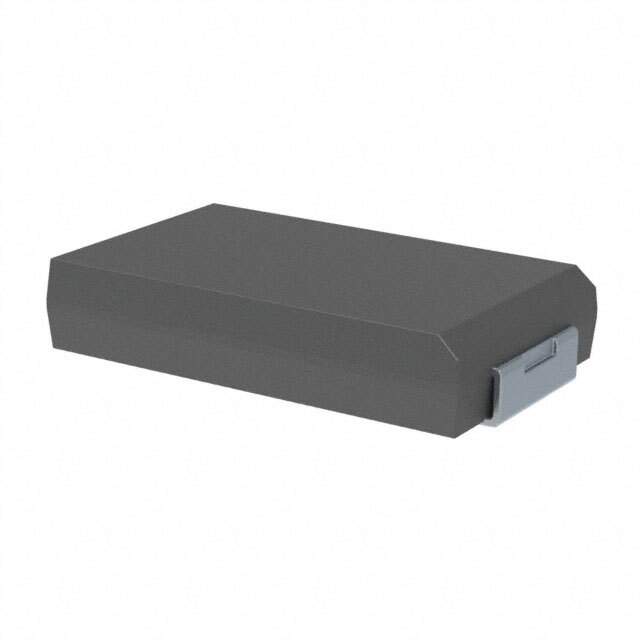

T520W476M016ATE045 Real Image
Same model may have multiple batches, images only for reference.

T520W476M016ATE045

Part No T520W476M016ATE045
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description Polymer Tantalum Capacitors 47UF 16V 2917
Datasheet
T520W476M016ATE045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Active
Capacitance 47μF
Tolerance ±20%
Voltage Rating 16V
Type Molded
ESR 45 mOhm
Temperature Range - Operating -55°C to 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.059" (1.50mm)
Manufacturer Size Code W
Features General Purpose
Win Source Part Number 1105083-T520W476M016ATE045
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T520W476M016ATE045 CAD Model

Description

The 1105083-T520W476M016ATE045 capacitor is a molded, general-purpose capacitor from Kemet with a voltage rating of 16V.

  • Voltage Rating: 16V
  • Capacitance: 47μF
  • Tolerance: ±20%
  • ESR: 45 mOhm
  • Lifetime @ Temperature: 2000 hours @ 105°C
  • Manufacturer Size Code: W
  • Packaging: Reel - TR
  • Seated Height: 0.059" (1.50mm)
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C to 105°C
  • Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
