Same model may have multiple batches, images only for reference.

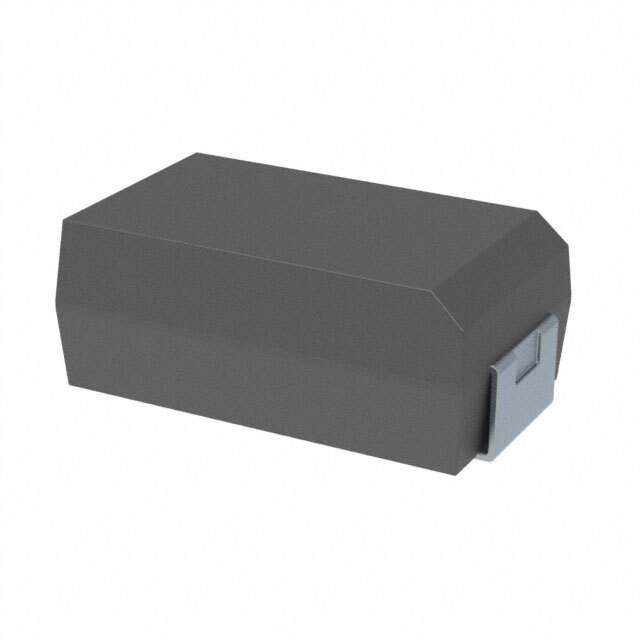

T520D156M025ATE060 Real Image
Same model may have multiple batches, images only for reference.

T520D156M025ATE060

Part No T520D156M025ATE060
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description Polymer Tantalum Capacitors 15UF 25V 2917
Datasheet
T520D156M025ATE060 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Active
Capacitance 15μF
Tolerance ±20%
Voltage Rating 25V
Type Molded
ESR 60 mOhm
Temperature Range - Operating -55°C to 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 1105037-T520D156M025ATE060
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T520D156M025ATE060 CAD Model

Description

The Kemet 1105037-T520D156M025ATE060 is a molded general-purpose capacitor with a voltage rating of 25V and a capacitance of 15μF.

  • Type: Molded General-Purpose
  • Voltage Rating: 25V
  • Capacitance: 15μF
  • Tolerance: ±20%
  • ESR: 60 mOhm
  • Manufacturer Size Code: D
  • Lifetime: 2000 Hrs @ 105°C
  • Mounting: SMD (SMT)
  • Packaging: Reel - TR
  • Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Supply and Demand Status: Limited
