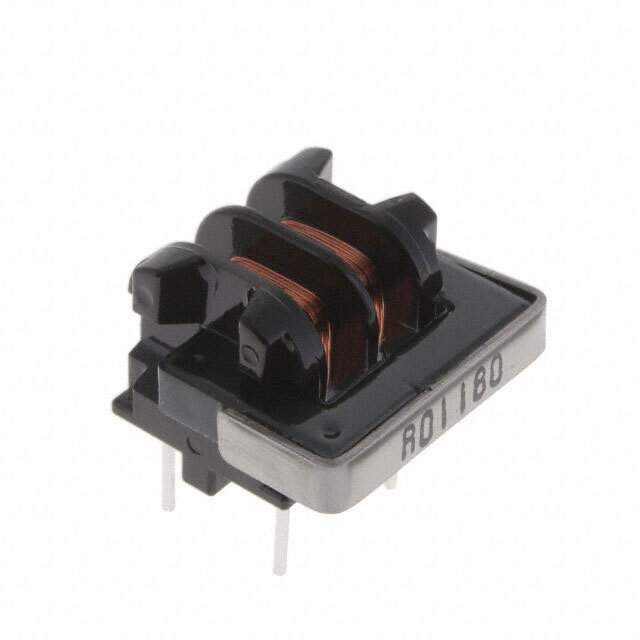

SU9H-R01180 Real Image
Same model may have multiple batches, images only for reference.

SU9H-R01180

Part No SU9H-R01180
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 18 mH @ 1 kHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 8Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.492" (12.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9H
Other Names 399-SU9H-R01180
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276468-SU9H-R01180
Ultra Librarian 3D Model Ultra Librarian SU9H-R01180 CAD Model

Description

The KEMET SU series common mode choke is a power line filter type component with a vertical, 4 PC pin package/case.

  • Manufacturer: KEMET
  • Filter Type: Power Line
  • Package/Case: Vertical, 4 PC pin
  • Voltage Rating: 250V AC
  • Maximum Current Rating: 100mA
  • Inductance: 18 mH @ a frequency of 1 kHz
  • DC Resistance (DCR): 8Ohm max
  • Standard Package: 100
  • Maximum Height: 0.492 inches (12.50mm)
  • Mounting Type: Through-Hole
  • Operating Temperature: -25°C to 120°C
  • Application: Power Line Filtering
