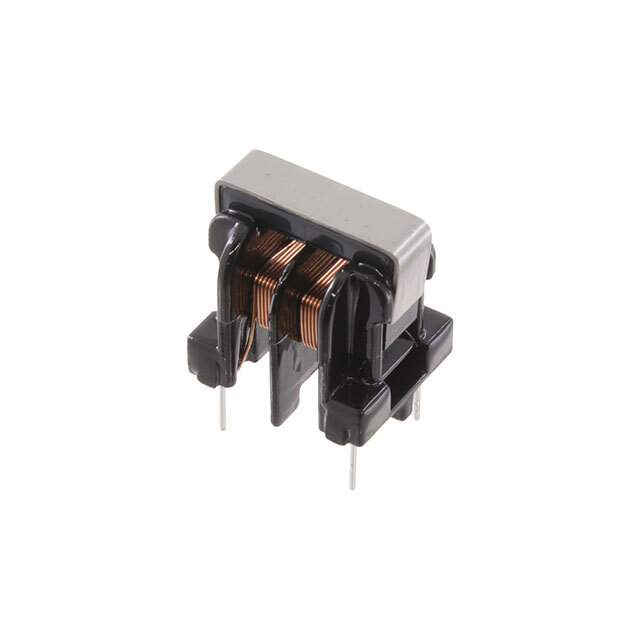

SU10VD-10020 Real Image
Same model may have multiple batches, images only for reference.

SU10VD-10020

Part No SU10VD-10020
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 20 µH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 120mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.709" L x 0.630" W (18.00mm x 16.00mm)
Height (Max) 0.787" (20.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU10VD
Other Names 399-SU10VD-10020
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276467-SU10VD-10020
Ultra Librarian 3D Model Ultra Librarian SU10VD-10020 CAD Model

Description

The Kemet 1276467-SU10VD-10020 is a common mode choke filter designed for power line filtering.

  • Manufacturer: Kemet
  • Filter Type: Common Mode Choke Filter
  • Application: Power Line Filtering
  • Voltage Rating: 250V
  • Current Rating: 1A
  • Inductance: 20 μH @ 1 kHz
  • DC Resistance (DCR): 120mOhm
  • Mounting Type: Through-hole technology
  • Package/Case: Vertical, 4 PC pin
  • Series: SU series
  • Height: 0.787 inches (20.00mm)
  • Dimension: 0.709 inches L x 0.630 inches W (18.00mm x 16.00mm)
  • Operating Temperature: -25°C to 120°C
