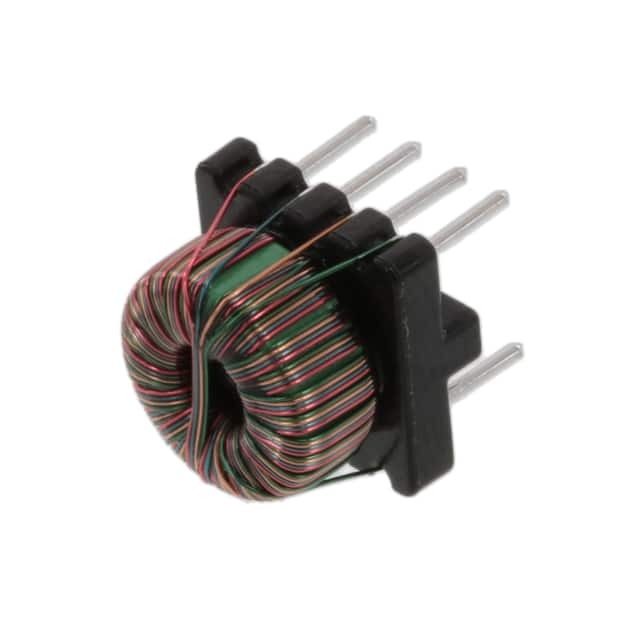

ST-104A4 Kemet
Same model may have multiple batches, images only for reference.

ST-104A4

Part No ST-104A4
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 500MA 4LN 3K OHM TH
Datasheet
ST-104A4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr KEMET
Series ST
Package Tray
Product Status Active
Number of Lines 4
Impedance @ Frequency 3 kOhms @ 500 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 360mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -20°C ~ 75°C
Mounting Type Through Hole
Size / Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height (Max) 0.472" (12.00mm)
Package / Case Horizontal, 8 PC Pin
Standard Package 400 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277113-ST-104A4
Ultra Librarian 3D Model Ultra Librarian ST-104A4 CAD Model

Description

The 1277113-ST-104A4 is a common mode choke from KEMET.

  • Category: Filters - Common Mode Chokes
  • Series: ST
  • Package: Tray
  • Standard Package: 400 pieces
  • Status: Active
  • Win Source Part Number: 1277113-ST-104A4
  • ECCN: EAR99
  • REACH: Not Affected
  • HTSUS: 8548.00.0000
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Size: 0.512" L x 0.512" W (13.00mm x 13.00mm)
  • Lines: 4
  • Impedance: 3 kOhms @ 500 kHz
  • DC Resistance (DCR): 360mOhm
  • Mounting Type: Through-Hole
  • Temperature Range: -20°C to 75°C
