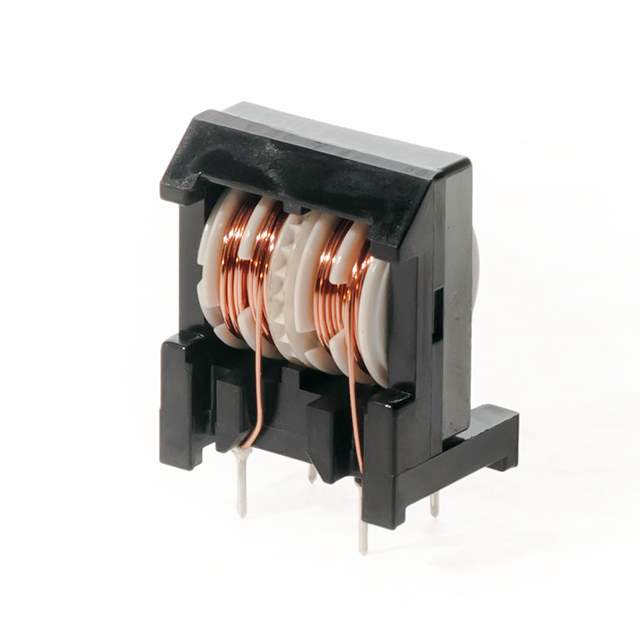

SSRH7H-M15043 Real Image
Same model may have multiple batches, images only for reference.

SSRH7H-M15043

Part No SSRH7H-M15043
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SSRH7H-M15043 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH7H-M
Package Bulk
Number of Lines 2
Inductance @ Frequency 4.3 mH @ 10 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 140mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.709" L x 0.571" W (18.00mm x 14.50mm)
Height (Max) 0.472" (12.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH7H
Other Names UALSH7M1504300,399-17050
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1276512-SSRH7H-M15043
Ultra Librarian 3D Model Ultra Librarian SSRH7H-M15043 CAD Model

Description

The SSRH7H-M15043 is a common mode choke from KEMET that has a current rating of 1.5A and an inductance of 4.3 mH @ 10 kHz.

  • Current Rating: 1.5A
  • Inductance: 4.3 mH @ 10 kHz
  • Height: 0.472" (12.00mm)
  • Package: Vertical, 4 PC pin
  • Operating Temperature: -25°C to 120°C
