Same model may have multiple batches, images only for reference.

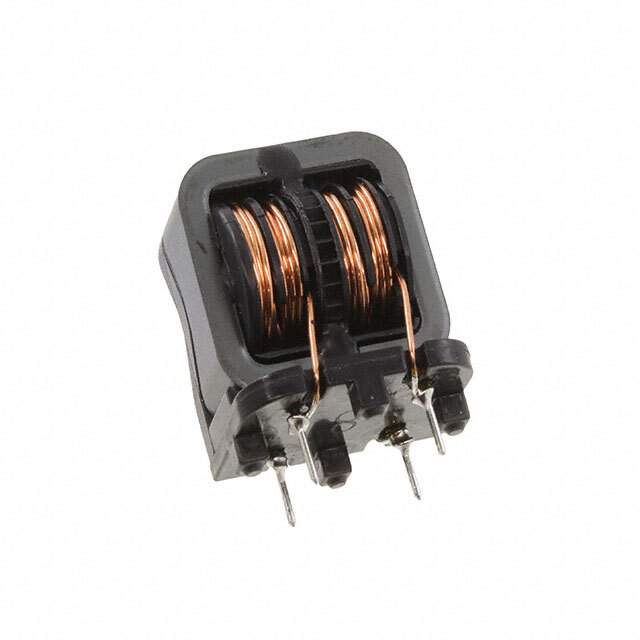

SSRH24NV-45059 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NV-45059

Part No SSRH24NV-45059
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 5.9 mH @ 10 kHz
Current Rating (Max) 4.5A
DC Resistance (DCR) (Max) 48mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 1.220" (31.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names UALS24V4505900,399-19072
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276531-SSRH24NV-45059
Ultra Librarian 3D Model Ultra Librarian SSRH24NV-45059 CAD Model

Description

The KEMET SSRH24NV-45059 is a common mode choke filter.

  • Product Name: SSRH24NV-45059
  • Manufacturer: KEMET
  • Voltage Rating: 250V
  • Current Rating (Max): 4.5A
  • Package: Includes 240 standard packages
  • Mounting Type: Vertical, 4 PC pin
  • REACH: Unaffected
  • ECCN: EAR99
