Same model may have multiple batches, images only for reference.

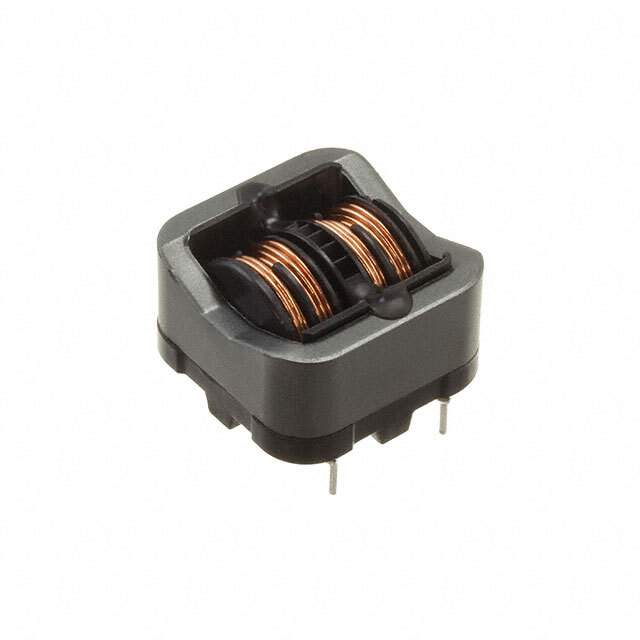

SSRH24NHS-50026 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NHS-50026

Part No SSRH24NHS-50026
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 2.6 mH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 27mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.004" L x 1.004" W (25.50mm x 25.50mm)
Height (Max) 0.709" (18.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names 399-19064,UALS24HS500260
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276540-SSRH24NHS-50026
Ultra Librarian 3D Model Ultra Librarian SSRH24NHS-50026 CAD Model

Description

The Kemet 1276540-SSRH24NHS-50026 is a common mode choke that is designed to filter out unwanted signals and noise from the circuit.

  • Manufacturer: Kemet
  • Product Name: 1276540-SSRH24NHS-50026
  • Voltage Rating: 250V
  • Current Rating: 5A
  • Height: 0.709" (18.00mm)
  • Mounting: Through-hole technology
  • Inductance: 2.6 mH @ 10 kHz
  • DC Resistance: 27mOhm
  • Package: Vertical, 4 PC Pin
  • Temperature Range: -25°C to 120°C
