Same model may have multiple batches, images only for reference.

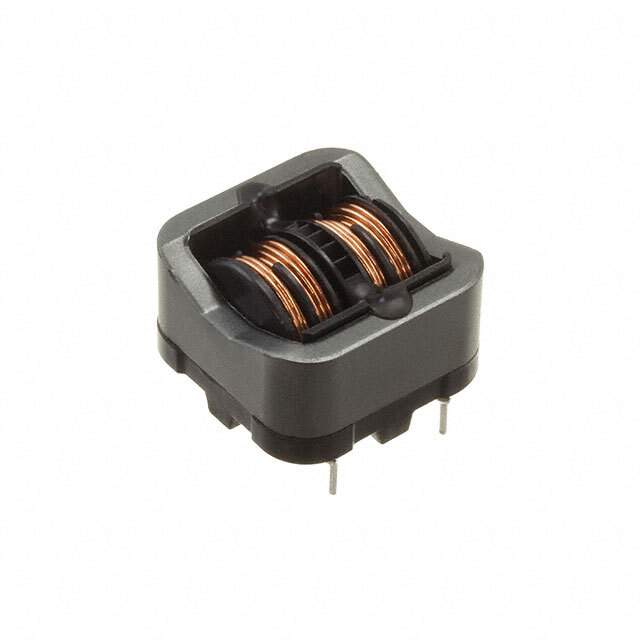

SSRH24NHS-16320 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NHS-16320

Part No SSRH24NHS-16320
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 32 mH @ 10 kHz
Current Rating (Max) 1.6A
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.004" L x 1.004" W (25.50mm x 25.50mm)
Height (Max) 0.709" (18.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names UALS24HS163200,399-19057
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276536-SSRH24NHS-16320
Ultra Librarian 3D Model Ultra Librarian SSRH24NHS-16320 CAD Model

Description

The Kemet SSRH24NHS-16320 is a common mode choke filter with a voltage rating of 250V and a maximum current rating of 1.6A.

  • Manufacturer: Kemet
  • Product Name: SSRH24NHS-16320
  • Voltage Rating: 250V
  • Maximum Current Rating: 1.6A
  • Category: Filter
  • Popularity: Medium
