Same model may have multiple batches, images only for reference.

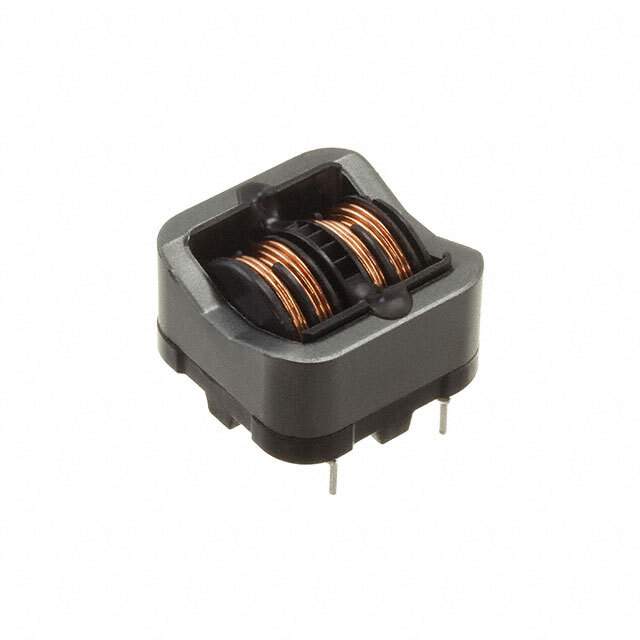

SSRH24NH-50041 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NH-50041

Part No SSRH24NH-50041
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 4.1 mH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 35mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.004" L x 1.004" W (25.50mm x 25.50mm)
Height (Max) 0.709" (18.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names 399-19055,UALS24H5004100
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276533-SSRH24NH-50041
Ultra Librarian 3D Model Ultra Librarian SSRH24NH-50041 CAD Model

Description

The SSRH series common mode choke is an electronic component with a voltage rating of 250V AC and a current rating of 5A.

  • Series: SSRH
  • Voltage Rating: 250V AC
  • Current Rating: 5A
  • Inductance @ Frequency: 4.1 mH @ 10 kHz
  • DC Resistance (DCR): 35mOhm @ max
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Packaging: Bulk
  • Height: 0.709 inches (18.00mm)
  • Dimension: 1.004 inches L x 1.004 inches W (25.50mm x 25.50mm)
  • Operating Temperature Range: -25°C to 120°C
  • Manufacturer: KEMET
  • Also Known As: 399-19055 or UALS24H5004100
