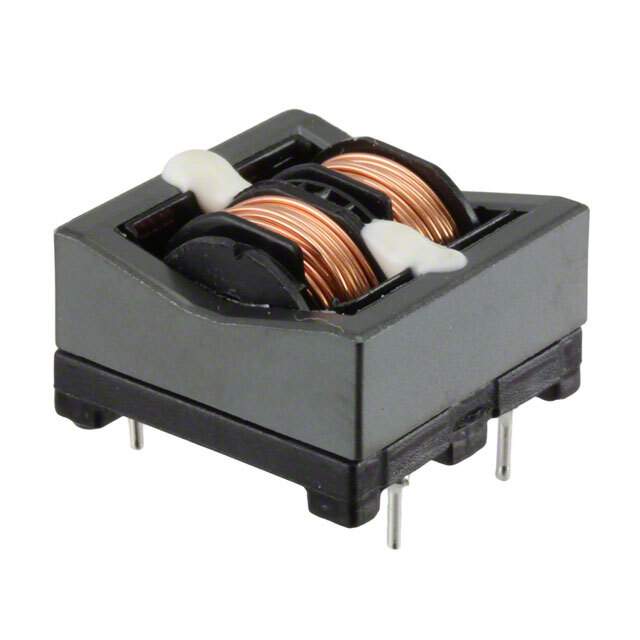

SSR21H-13120 Real Image
Same model may have multiple batches, images only for reference.

SSR21H-13120

Part No SSR21H-13120
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR21H
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 12 mH @ 10 kHz
Current Rating (Max) 1.3A
DC Resistance (DCR) (Max) 240mOhm
Voltage Rating - DC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height (Max) 0.571" (14.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21H
Other Names 399-10773,UALR21H1312000
Standard Package 420
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276546-SSR21H-13120
Ultra Librarian 3D Model Ultra Librarian SSR21H-13120 CAD Model

Description

The SSR21H-13120 is a common mode choke filter designed for use in a variety of electronic devices.

  • Product Name: SSR21H-13120
  • Manufacturer: KEMET
  • Maximum Current Rating: 1.3A
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Inductance: 12 mH @ 10 kHz
  • DC Resistance (DCR): 240mOhm
  • Temperature Range: -25°C to 120°C
  • ECCN: EAR99
