Same model may have multiple batches, images only for reference.

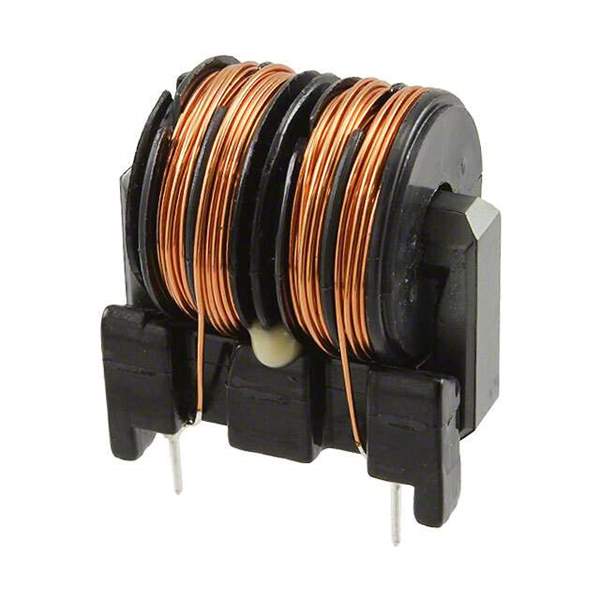

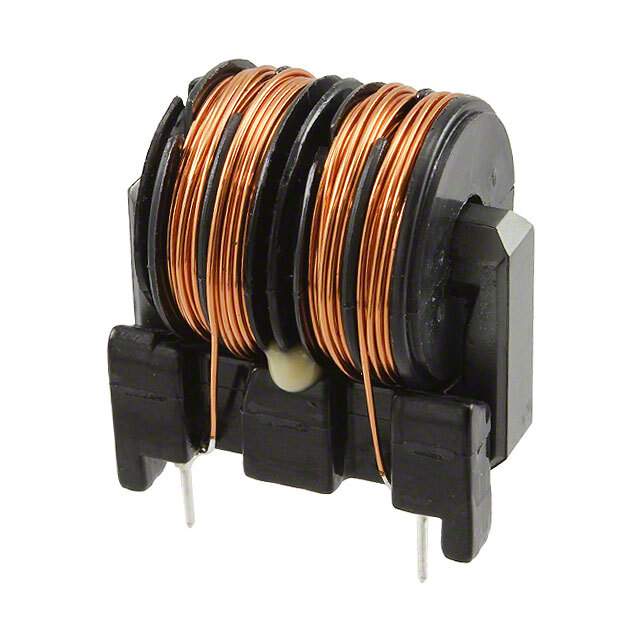

SS30V-R150270 Real Image
Same model may have multiple batches, images only for reference.

SS30V-R150270

Part No SS30V-R150270
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 27 mH @ 1 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 500mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
Other Names 399-10598,UAL30VR1502700
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276772-SS30V-R150270
Ultra Librarian 3D Model Ultra Librarian SS30V-R150270 CAD Model

Description

The KEMET 1130152 is a common mode choke filter with a series of SS.

  • Voltage Rating: 250V (AC)
  • Current Rating: 1.5A
  • Package: in bulk
  • Mounted: in through hole style
  • Height: 1.339" (34.00mm)
  • Number of Lines: 2
  • Application: power line category applications
  • Inductance: 27 mH @ 1 kHz
  • Temperature Range: -25°C to 120°C
