Same model may have multiple batches, images only for reference.

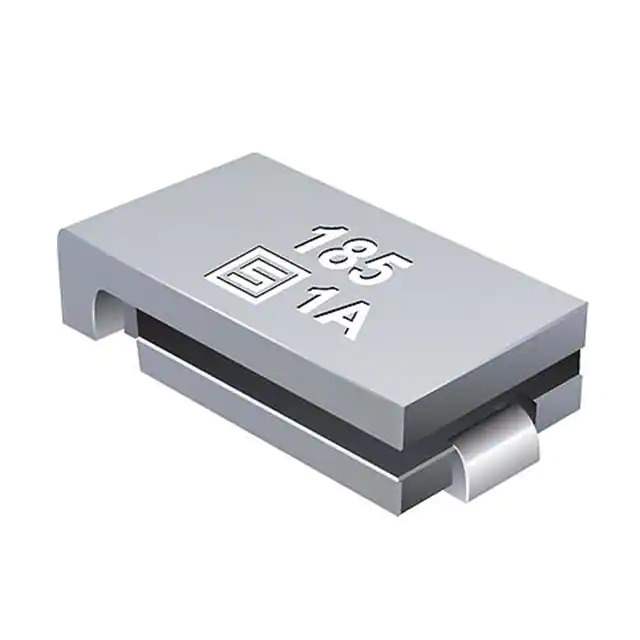

PFSM.250.2 Real Image
Same model may have multiple batches, images only for reference.

PFSM.250.2

Part No PFSM.250.2
Manufacturer Schurter Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 15V 2.5A 2SMD
Datasheet
PFSM.250.2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr SCHURTER Inc.
Series PFSM
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 15V
Current - Hold (Ih) (Max) 2.5 A
Current - Trip (It) 5 A
Current - Max 100 A
Time to Trip 25 s
Resistance - Initial (Ri) (Min) 24 mOhms
Resistance - Post Trip (R1) (Max) 85 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 2-SMD
Size / Dimension 0.344" L x 0.264" W (8.75mm x 6.71mm)
Thickness (Max) 0.118" (3.00mm)
Approval Agency cURus, TUV
Base Product Number PFSM.250
Standard Package 1,500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 854185-PFSM.250.2
Ultra Librarian 3D Model Ultra Librarian PFSM.250.2 CAD Model

Description

The PTC Resettable Fuse with the Win Source Part Number 854185-PFSM.250.2 is a polymeric fuse designed for circuit protection applications.

  • Series: PFSM
  • Package: Tape and Reel
  • Length: 0.344 inches (8.75mm)
  • Width: 0.264 inches (6.71mm)
  • Maximum Voltage Rating: 15V
  • Maximum Current Rating: 100A
  • Trip Current: 5A
  • Time to Trip: 25 seconds
  • Manufacturer: SCHURTER Inc.
  • Product Status: Active
  • AEC-Q200 Ratings: Yes
