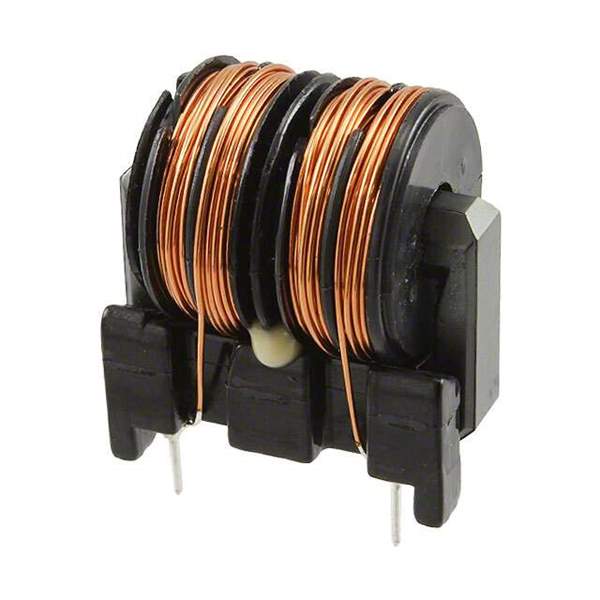

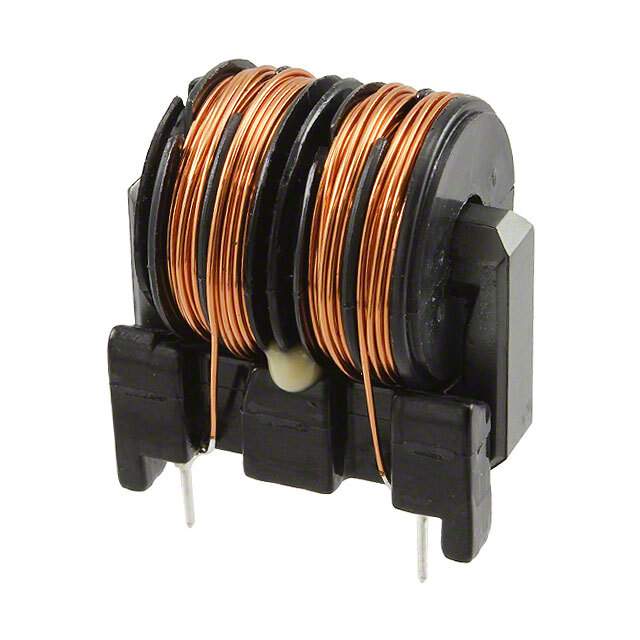

SS30V-300054 Real Image
Same model may have multiple batches, images only for reference.

SS30V-300054

Part No SS30V-300054
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 5.4MH 3A 2LN TH / Common Mode Chokes Dual 5400uH 1kHz 3A 0.12Ohm DCR Thru-Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Kemet
Series SS
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5.4mH @ 1kHz
Current Rating (Maximum) 3A
DC Resistance (DCR) (Maximum) 120 mOhm
Voltage Rating - AC 250V
Operating Temperature Range -25°C ~ 120°C
Mounting Style Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Maximum) 1.339" (34.00mm)
Package Vertical, 4 PC Pin
Win Source Part Number 798977-SS30V-300054
Popularity Medium
Supply and Demand Status Limited
Family Name SS30V
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SS30V-300054 CAD Model

Description

The SS30V-300054 is a power line filter manufactured by Kemet.

  • Voltage Rating: 250V (AC)
  • Current Rating: 3A (maximum)
  • Package Type: Vertical, 4 PC pin
  • Operating Temperature Range: -25°C to 120°C
