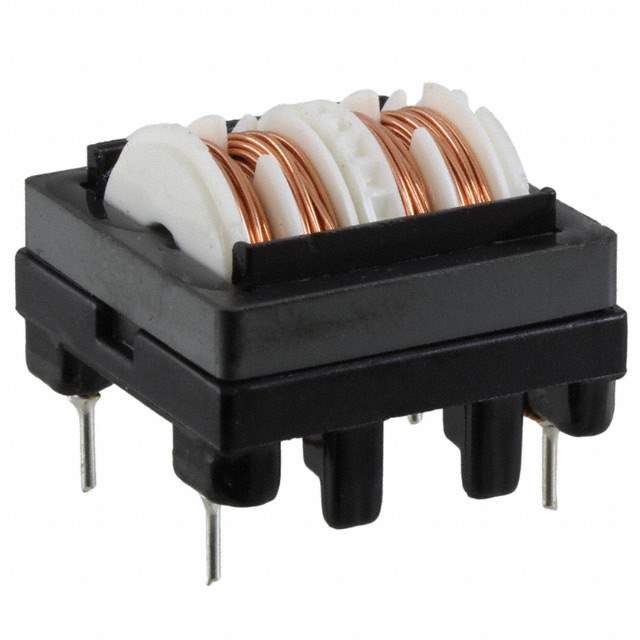

SS24H-R10170-CH Real Image
Same model may have multiple batches, images only for reference.

SS24H-R10170-CH

Part No SS24H-R10170-CH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 17 mH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 550mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.024" L x 1.024" W (26.00mm x 26.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS24H
Other Names 399-10750,UAL24HR10170CH
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276785-SS24H-R10170-CH
Ultra Librarian 3D Model Ultra Librarian SS24H-R10170-CH CAD Model

Description

The KEMET SS24H-R10170-CH is a common mode choke filter that is used to reduce noise in electronic devices.

  • Voltage Rating: 250V AC
  • Current (Max): 1A
  • Package Type: Bulk
  • Mounting Type: Through Hole
  • Height: 21.00mm
  • Dimension: 26.00mm x 26.00mm
  • Inductance: 17mH @ 1 kHz
  • DC Resistance: 550mOhm
  • Temperature Range: -25°C to 120°C
  • Standard Package: 300
The SS24H-R10170-CH is an excellent choice for common mode choke filters due to its high inductance and low DC resistance.
